China Shenta QTY6-15 Automatic Hydraulic Cement Hollow Brick Making Equipment Factory Price

Standard seaworthy packing suitable for sea long distance transportation

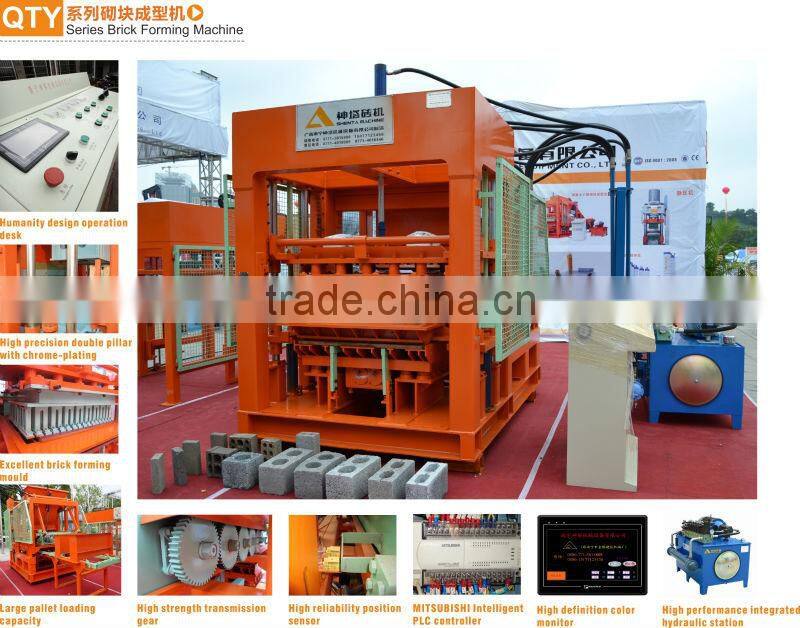

Characteristic of Automatic Hydraulic cement hollow brick making equipment

1.The main machine adopt Japanese Mitsubishi PLC controller, has the functions of HMI operation and brick automatic output, automatic reset, lack material and lack plank alarm, easy and humanized operation, the electric parts are provided by well-known company to ensure the safety and stable running;
2.The main machine utilized the molding method of pressure and high frequency vibration to make the more airtight and solid block;
3.With multifunction feature to produce both the load-bearing brick and non-load-bearing brick, according to change the moulds to produce different wall bricks,   as well as produce multi-hole bricks and road pavers bricks;high quality frequency converter can protect the working life, as well as reduce the power consumption.

Main Specification of Automatic Hydraulic cement hollow brick making equipment

Theoretic Productivity of Automatic Hydraulic cement hollow brick making equipment

Brick Type	Dimension	Blocks/Cycle	Blocks/Hour	Blocks/Shift	Remark
Hollow Brick	390*190*190mm	6	1440	11520
Porous Brick	240*115*90mm	16	4320	34560
Paver Brick	200*100*60mm	20	4800	38400
Solid Brick	240*115*53mm	36	8640	69120

 Note: Special brick model is available according with customer demand.

Components of Automatic Production Line:

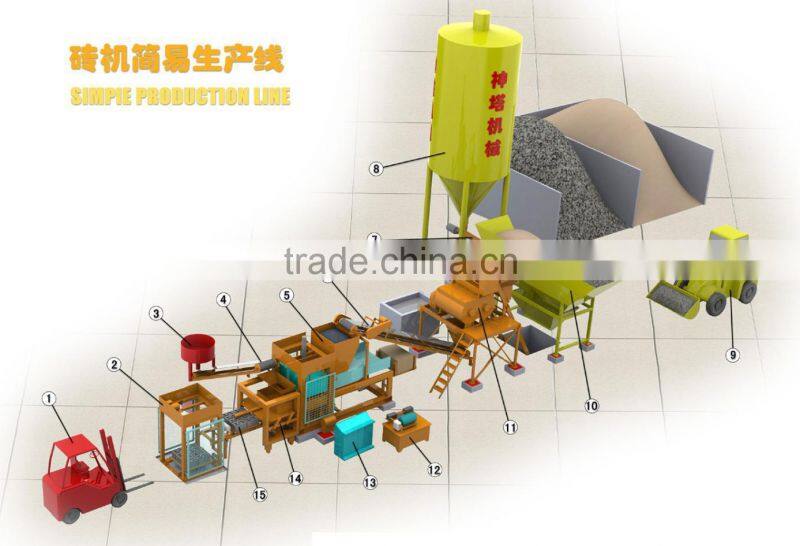

Simple Automatic Production Line:

Equipment List:

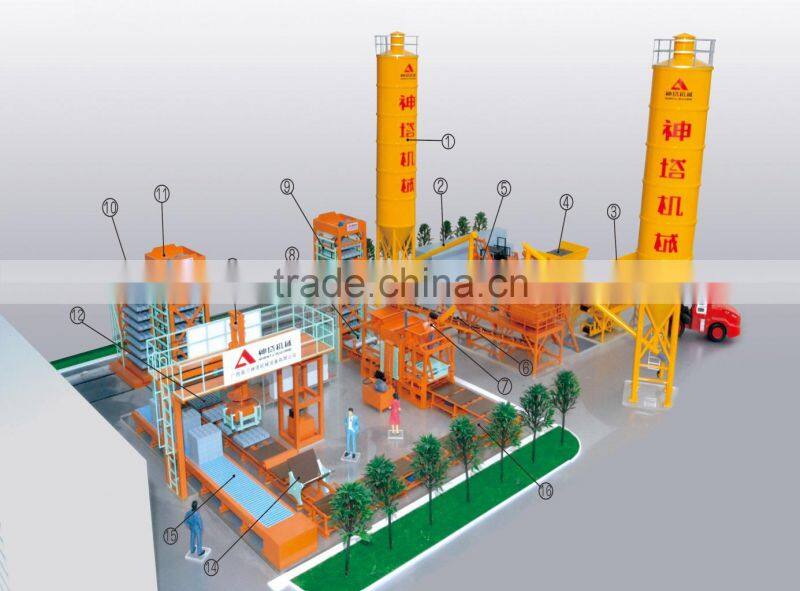

Full Automatic Production Line:

Equipment List:

Raw Material:
Our machine can adopt the following raw materials to make the good quality hollow brick, solid brick and paver brick.

1.Sand: 30~40%;                 4.Fly Ash or Additive: ~10%;

2.Cement:  10%~20%;         3.Crushed Stone (<5cm): 30~40%.

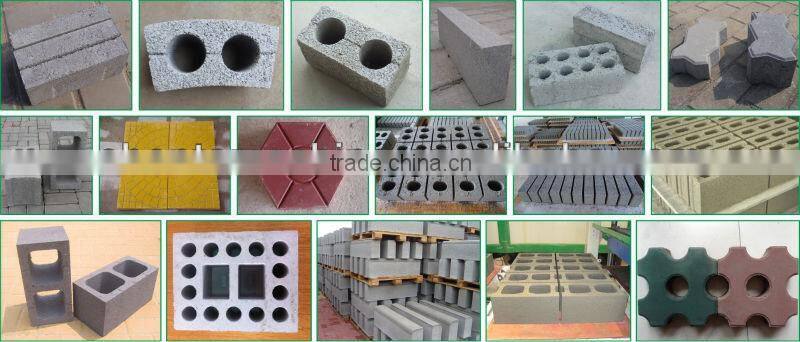

Brick Sample:

Our machine can produce the concrete hollow brick, solid brick, porous brick, paver brick, interlock brick, road traffic stone and so on.

Experienced in selling concrete brick machine to more than 30 different countries, we pack and load the machines well and prevent any damages during transportation, all the key parts are protect by the wooden box.

Factory Ability:

1.Factory Area: 40,000 square meter;

2.Facility: CNC Lathe: 06 sets; Boring Lathe: 02 sets; Shaper: 02 sets; Milling Machine: 04 sets;  Press Brake: 02 units, CNC Flame Cutter: 01 sets;  Crane: 10 sets;  Shot Blast Machine: 01 set

Quality Control:

We adopt the high quality steel materials, and every process will have the strict inspection and test to ensure the machine has perfect performance.

Exhibitions:

We take parts in many exhibitions every year, such as Canton Fair in Guangzhou; India international engineering machinery, building materials machinery, mining machinery, engineering vehicles and parts exhibition; International concrete technology and equipment exhibition in India; The ASEAN-China Exposition in Nanning, etc.
