Brush Cleaning Machine

FOB Price

US$ 8,000 - 10,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

JXC-1000 Dust Cleaning Machine fit for all kinds of board
*Especially Wood panel cleaning
*Has passed CE qualification

Best Quality of Dust Cleaning machine : JXC-1000

Machine Configuration
1. The special desighed double nylon cleaning brush, collocated with powerful blower, will clean dust with high efficiency. It can collect all the scrub or saw dust into the dust collection machine. 2. The 3MM anti-skidding conveying belt, which is made from imported material, can increase the frictional force and also effectively prevent short boards of conveying belts from slipping and not working. 3. The innovative and beautiful design occupies a small area. 4. The lifting system adopts elevators with dovetail groove style. The speed reducer raises and down electrically and smoothly, with good stability. Equipments required to configurate by customers themselves: 1. 50HZ and 380V three-phase power source. 2. A four- head dust collection machine or a dust collection passage.
Technical Parameters
Model	JXRA V-1000
Working width	1000mm
Feeding speed	5~20m/min
Convey power	1.5kw
Brush wheel power	1.5kw
Fan power	0.2kw*4
Total power	3.8kw
*Machine size(LWH)*	240017001450mm
Machine weight	800kg

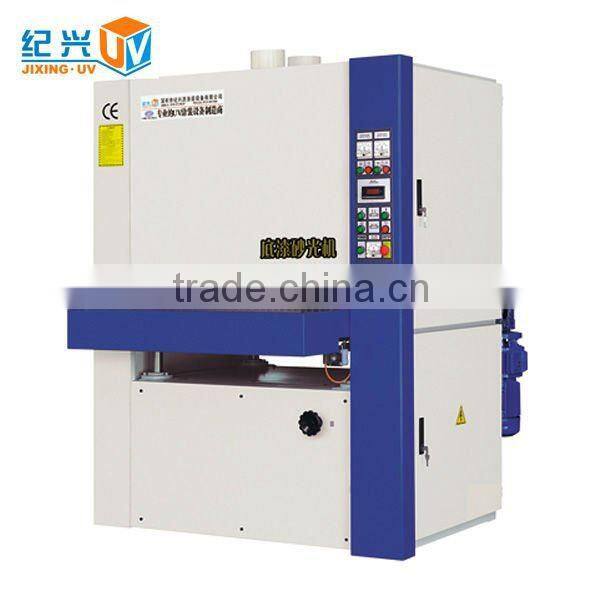

Sanding machine Woodworking before Dust Cleaning Machine

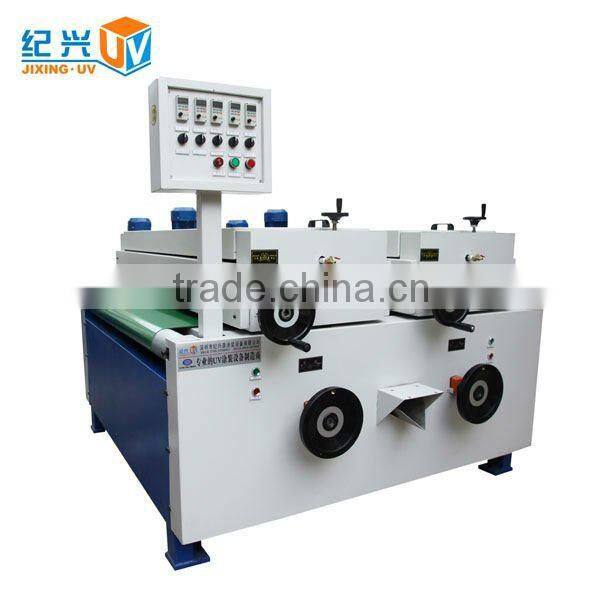

Roller Coating machine after dust cleaning machine
