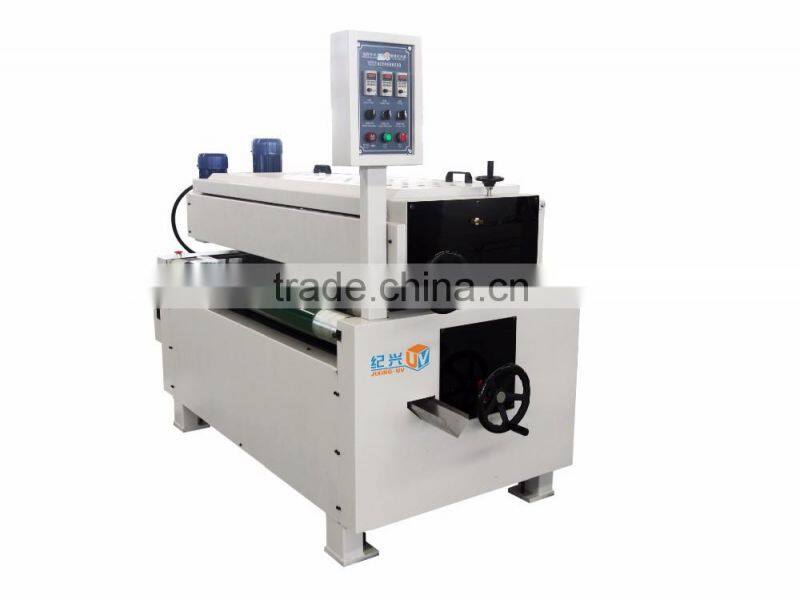

1300mm Full Precision Single Roller Coater

FOB Price

US$ 9,700 - 9,800 / Set

1 Set(Min. Order)

Port shanghai port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Other, Machinery & Hardware
Automatic Grade	Automatic	Driven Type	Electric
Voltage	380V	Power	9.75
Packaging Type	Case	Packaging Material	Wood
Place of Origin	Anhui, China	Brand Name	JXY
Model Number	JXRA I-1300	Dimension(LWH)	1000x2360x1580
Certification	ISO9001	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

1300mm Full precision single roller coater configuration & parameter

Machine Configuration

1, using imported materials rubber roller rubber roller diameter of 240mm, the roll surface by CNC precision machining.

2, rolls with a diameter of 150mm light big roll, chrome roll surface, cylindrical grinder by CNC precision machining.

3, equipped with imported materials scraper strong toughness, by the reducer adjustment, high accuracy.

4, the conveyor belt is 3mm slip, solvent resistance, to prevent the phenomenon from the floor, plus anti-deviation device.

5, running light roller and rubber roller by an independent drive and control gear, wherein the spacing between the adjustment screw through a worm machine, driven dovetail mechanism to complete.

6, the bearing sealing structure to prevent the penetration of paint.

7, the entire machine configuration Taiwan Delta converter and three-phase asynchronous motor worm gear.

8, the whole package, a diaphragm pump, a heating oil tank 20L.

Customers need to take care of themselves with others:

1,50Hz, 380V three-phase power supply.

2,0.5MPA gas source.

Machine parameter
model	JXRA Ⅰ-1300	Model	JXRA Ⅰ-1300
effective processing width(mm)	1300	Transmission peed(m/min)	5~15
effective processing thickness(mm)	2~80	Coating roll size(mm)	1450×φ 240
Minimum transport length(mm)	300	Quantitative roll size(mm)	1450×φ 150
Transmission power(kw)	1.5	PearlNMRW075-30 series	Delta converter VFD015M43B
Rubber roll power(kw)	1.5	PearlNMRW075-60 series	Delta converter VFD015M43B
Electro-optical roller power(kw)	0.75	PearlNMRW050-40 series	Delta converter VFD007M43B
Total power(kw)	9.75	Machine size(mm)	1000×2360×1580
Lift the feed through the worm double dovetail slot synchronization adjustment
Infeed end equipped with infrared sensor (optional) to prevent accidental injury or hand too thick plate
High-strength tool steel blade, with a separate NMRW030-50 series reducer, to ensure the accuracy of the blade angle adjustment
