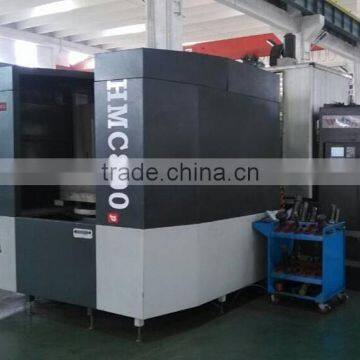

horizontal machining center cnc

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
Place of Origin	Shandong, China	Brand Name	Haishu
Model Number	HMC800	Voltage	380v 3 phase
Power(W)	3.7kw	Weight	20000
Certification	CE/ISO	Warranty	1year
After-sales Service Provided	Engineers available to service machinery overseas

Item	Unit	HMC800
Table travel(X,Y,Z)	mm	1150×900×900
Table size	mm	800×800
Max.load of worktable	kg	2000
Worktable indexing		1°×360°
Worktable positioning accuracy		±2”
Worktable re-positioning accuracy		±1.5”
Rapid feed speed	m/min	24
Spindle speed	r/min	35~4500
Spindle torque	N.m	1350
Tool shank type		BT50
Spindle ftont bearing diameter	mm	100
Spindle motor power	kw	22/26
Tool magazine capability	qty	40( Chain )
Tool weight	kg	25
(X,Y,Z) Positioning accuracy(X,Y,Z)	mm	±0.0025 JIS
(X,Y,Z) Repeat positioning accuracy(X,Y,Z)	mm	±0.0015 JIS
Machine weight	kg	20000

Main configuratiom

Standard

1,FANUC 0i MD (FANUC 0i MD CNC system)

2,(Chain-type tool magazine capability 40 tools)

3,(Automatic chip conveyor)

Optional

SIEMENS 828D CNC system
