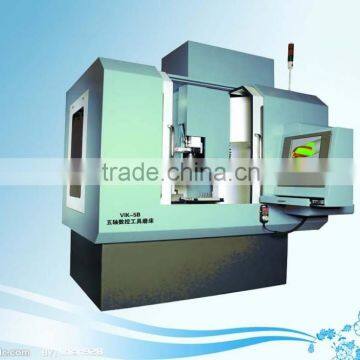

Hogh preciosion VIK-5B Five-axis Hot Selling CNC Metal Tool Grinding Machine
- Qingdao
- T/T Credit Card
You May Like
-
lO WPRICE VIK-5B Universal cnc Tool Grinder with CE
-
VIK-5B CNC Tool Grinder with multi function made in China FORM haishu
-
vertical milling machine cnc milling machine milling machine made in shandong
-
milling machine accessories cnc milling machine milling machine contoured surface
-
cnc milling machine milling machine made designing datum
-
made in china cnc milling machine milling machine new! finishing machine
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 345 | Place of Origin | Shandong, China | |
| Brand Name | Haishu | Model Number | VIK-5B | |
| Voltage | 380v 50hz | Power(W) | 30KVA | |
| Dimension(L*W*H) | 2.3X1.65X2.4M | Weight | 2200kg | |
| Certification | CE , ISO | After-sales Service Provided | Overseas third-party support available |
Product Description
Hogh preciosion VIK-5B Five-axis Hot Selling CNC Metal Tool Grinding Machine software with 2D and 3D presentation capabilities, you can display the complete machining tool shape, avoid arguments
Setting error of the workpiece and machine damage, avoid interfering machine collisions.
The tool can store hundreds of parameters of the model, the production of many types of user-friendly, no need to adjust the machine settings, only
You need to call the appropriate tool for the production model, and convenient.
The machine is simple to set up, without excessive demands on the operator, you can only control the tool parameter input
IK-5B technical parameters
| item | unite | values |
Itinerary
| X-axis (left and right
| mm | 340 |
Y-axis (front to back)
| mm | 290 | |
Z-axis (up and down)
| mm | 220 |
Mobile |
Three-axis rapid traverse
| m/min | 15/15/15 |
|
Minimum input unit
| mm | 0.001 |
Motor
|
Spindle power (30 min / continuous)
| KW | 20~12.5 |
|
Spindle drive system
|
| Frequency Spindle
|
|
X / Y / Z / A / C-axis power
| KW | 0.85/0.85/1.3/0.85/1.3 |
|
Feed system drive system
|
| AC servo
|
(JIS) Accuracy
|
Positioning accuracy
| mm | 0.006 |
|
Repeat accuracy
| mm | 0.004 |
Color
|
Body color
|
| VIK standard color
|
rail |
Form
|
|
Linear Slides
|
Ball
|
XYZ axis diameter
| mm | 32/32/32 |
Fuel tank capacity
|
Cutting fluid box
| L | 300 |
|
Lubrication system
| L | 2 |
oOther other Qíta
Other
|
Pressure Demand
| MPA | 0.6 |
|
Power capacity
| KVA | 30 |
|
Weight
| Kg | 5000 |
|
Area
| mm | 2.3X1.65X2.4M |
| Total weight
| Kg | 5500 |
More pictures
Finished profduct
