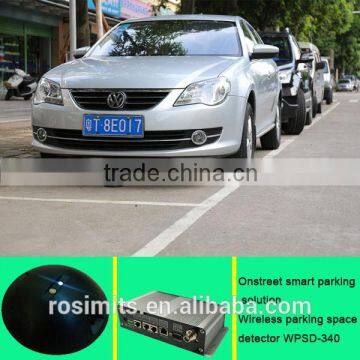

Rosim newest wireless automatic parking space detector for car parking system

 WPSD wireless parking detector is designed to be buried in parking spaces and to detect the arrival and departure of vehicles. By providing accurate information of available parking spaces, helping motorists save time and fuel,also reduce atmospheric pollution and congestion for cities. WPSD desined by Rosim ITS is mainly applied to outdoor,street parking,off-street or plaza parking guidance system.

WPSD-340 wireless  surface mounting wireless parking detector, which integrates two detection technology of magnetic and optic together in a small unit, provides a high accuracy, easy installing and low cost parking lot information collecting solution for indoor/outdoor parking management.

KEY FEATURES

200m transmit range

-40~85℃ work temperature

3 years battery lifespan

Magnetic and optic detection

All weather work condition

0-150cm detection range

IP68 protection grade

99% accuracy

Φ143/H36mm

Surface mount installation

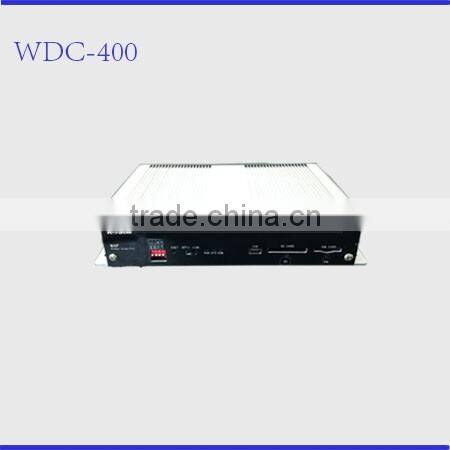

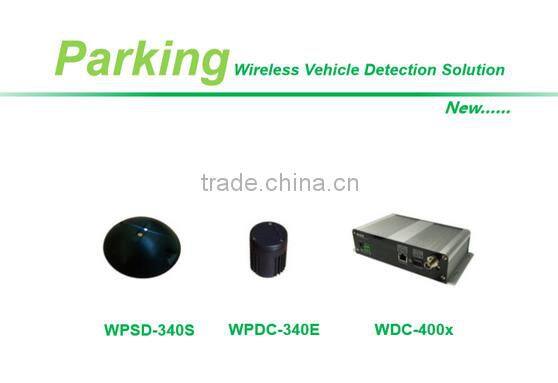

WPDC-400x wireless parking data collector acts as a gateway between the parking guidance system platform and the wireless parking lots detection network formed among WPSD detector. WPDC-400x manages all the sensors, as well as provides data interface to user system. Rosim provides C version for compact small size and W version for water proof.

KEY FEATURES

200m transmit range

Self-healing mesh networks

 Connect up to 100 sensors

 -40~85℃ work temperature

 Ethernet/RS-232

 DC5V/PoE(option) power supply

 L15.3/W8.9/H5.6cm for C version

 L18/W12/H6cm for W version

Outdoor parking lot is one of the most common parking types because of it flexible space and convenient parking way. But the managers always can't know whether parking spaces are full or not. And there exist many disadvantages in using traditional wired system, including the great difficulties in laying cables and the high cost in materials and labour.

The sensor can acquire the real-time parking space data for vacant and occupied condition to the WPDC with wireless communication, then the WPDC will transmit all the accurate data to the host plateform, so the driver will know which spaces is available in a big parking lot.

1.Outdoor parking occupancy information system.

2.On-street,off-street parking lot management.

3.Plaza parking payment system.

4.Indoor parking guidance system with LED indicator.

Major advantages:

1) Wireless communication: there’s no need to place cables or wires as the installation of loops or ultrasonic sensor, but only pad, which makes WPSDs become the most suitable vehicle detecting solution for parking lot, especially outdoor parking lot;

2)High accuracy: the ROSIM wireless Parking Space Detector featured with dual magnetic and optic detection technology. The combination of the two vehicle detection technology, as well as a sophisticated algorithm, greatly improves the accuracy and efficiency of the detection. accuracy>99%

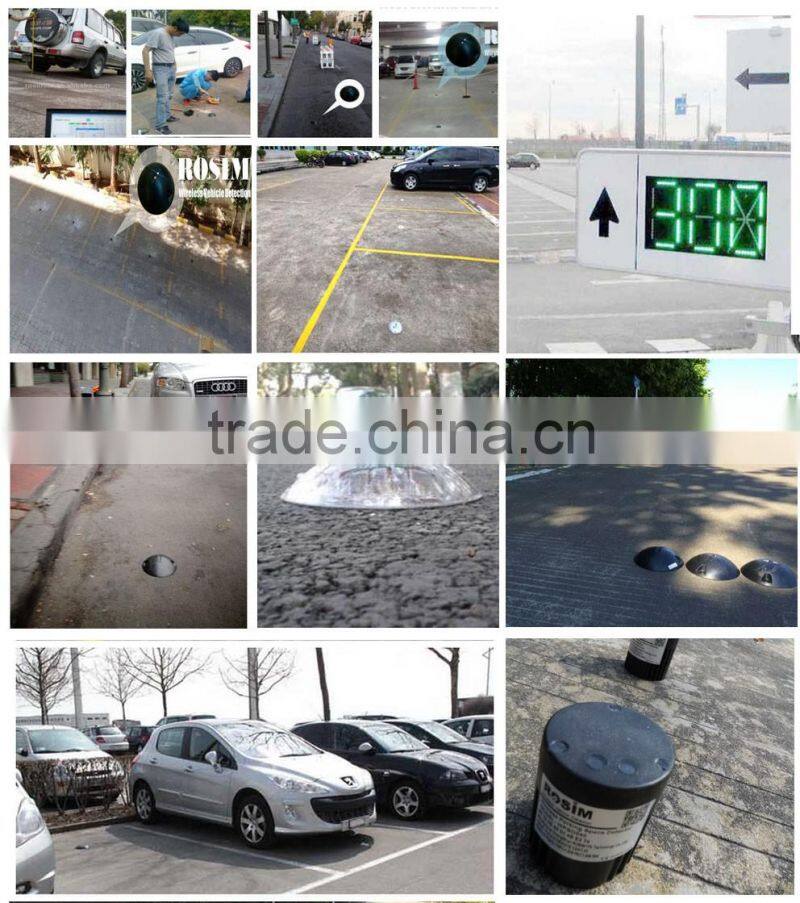

3)Fast installation: it just needs about 2 minutes for installation of each WPSD because of  the adoption of pad installation;

4)work in all weather: Because the WPSD has strong characteristics of waterproof, snow defense, anti-press, anti-corrosion and strong anti-jamming capacity,it can normally work in all weather;

5)Average 5 years life span( replaceable);

6)  Easy to maintain: Wireless parking space vehicle detector (WPSD) supports firmware updating over the air.

7) Low operation consuming: due to the ultra-low power design and battery supply solution, Wireless parking space vehicle detector (WPSD) ’s consumed power is very lower than any other detectors in the market. This appears more and more significantly to our environments;

Maintenance and Support:

  Rosim ITS provides our customers high-quality wireless vehicle detecting products and solutions, all the products support wireless updating, which makes it easily maintained, and 1 year quality guarantee .

Thank you for your attention, any more question, pls feel free to contact Kate!
