Home > Products > Turning center > Slant Bed Cnc Lathe CNC450B-1 Lathe Mill Drill Machine With Turret Live Tool

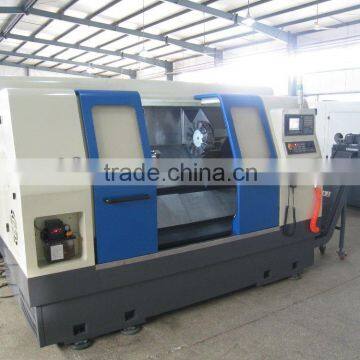

Slant Bed Cnc Lathe CNC450B-1 Lathe Mill Drill Machine With Turret Live Tool

FOB Price

US$ 30,000 - 100,000 / Set

1 Set(Min. Order)

Port QINGDAO
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
Place of Origin	Shandong, China	Brand Name	HAISHU
Model Number	cnc450b-1	Voltage	380v 50hz
Power(W)	11000	Dimension(LWH)	3000x1600x1950
Weight	5000 KG	Certification	ISO9001,CE.TUV
Warranty	one year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

slant bed cnc lathe CNC450B-1 lathe mill drill machine with turret live tool

Technical parameters

No.	Item	Unit	specifications
No.	Item	Unit	CNC450B-1
1	Max.rotation diameter on lathe’ body	mm	450
2	piece lengt	mm	750/1000/1500
3	Max.turning diameter	mm	400
4	Spindle nose type and code	mm	A8
5	Hydraulic chuck1	mm	φ250(10")
6	Spindle form		Servo spindle unit
7	Front spindle bore taper		1:20
8	Spindle bore	mm	60
9	2- spindle speed range	rpm	0-4000
10	X/Z/B Rapid traverse	mm/min	40000
11	Cs1,Cs2 main servo motor power	kW	11
13	X/Z-axis motor max.torque	N.m	10
15	B-axis(sub-spindle) motor max.torque	N.m	15
16	Power specifications	v	380±10%. 50Hz±1Hz
17	turret transfer time (one station)	s	1.6(horizontal 12)
18	Turret transfer repeat positioning accuracy	mm	0.005"
19	X-axis travel	mm	300
20	Z-axis travel	mm	1100/1350/1850
21	Tailstock sleeve diameter/travel	mm	70/100
22	Tailstock tapered bore taper	rpm	4000
24	hydraulic servo turret form		Horizontal 12-station servo power turret
28	Knife handle size	mm	25×25
29	Net weight	kg	5000
30	Size(L×W×H)	mm	2700/3000/3500×1650×1900

Standard configuration:

CNC system: GSK980TDc

Spindle 3-gears frequency control speed

hydraulic center solid chuck

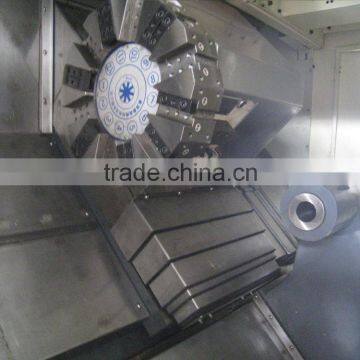

Horizontal 12-station hydraulic turret

3-axis hard rail

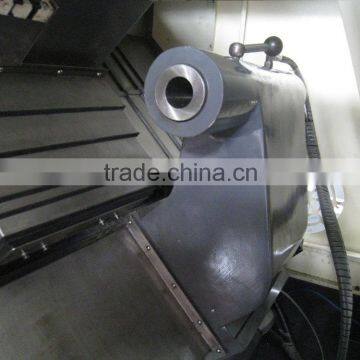

Electric tailstock,hydraulic sleeve

Turning cooling system

Automatic lubrication system

Whole protection system

Select Configuration:

CNC system : SYNTEC , Fanuc systems, Siemens system

Servo spindle unit

Hydraulic hollow chuck

3-axis line rail

Programming electric tailstock

Automatic feeder

Automatic chip conveyor

Automatic pick pieces equipment

Automatic protective door

Loading and unloading robots

GUARANTEE AND AFTER-SALE SERVICES:

1.one year guarantee for whole machine except of CNC system, which guarantee is three years

2.24-hours technical support by E-mail or telephone

3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD

4.Provide extra accessories for the machine

5.Also provide service of make program according to your drawings

6.Customized or special design is welcome.

If you are interested in slant bed cnc lathe CNC450B-1 lathe mill drill machine with turret live tool , welcome to leave a message or send the inquiry to understand the details of machine.
