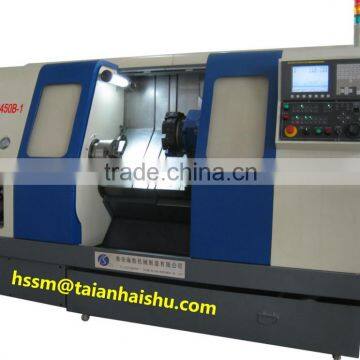

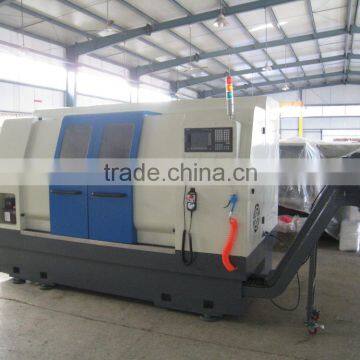

Lathe and Milling Machine CNC450B-1 Lathe Mill Drill Machine/ Slant Bed Cnc Lathe
- QINGDAO
- T/T Credit Card
You May Like
-
Lathe and Milling Machine for Metalworking CNC450B Slant Bed Cnc Lathe
-
Lathe and Milling Machine CNC550B-1 Cnc Lathe Mill Drill for Metalworking
-
Double Spindle Cnc Lathe Machine CNC350T Slant Bed Cnc Lathe for Metalworking
-
Cnc Turning Center CNC450T Double Spindle Cnc Lathe Machine and Slant Bed Cnc Lathe
-
Double Spindle Cnc Lathe Machine CNC350A Mill Lathe Combination Slant Bed Cnc Lathe
-
Lathe Milling Drilling Machine CNC150B Cnc Turning Center and Auto Feed Lathe
Product Details
| Condition | New | Type | Horizontal | |
| Place of Origin | Shandong, China | Brand Name | HAISHU | |
| Model Number | cnc450b-1 | Voltage | 380v 50hz | |
| Power(W) | 11000 | Dimension(L*W*H) | 3000x1600x1950 | |
| Weight | 5000 KG | Certification | ISO9001,CE.TUV | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
lathe and milling machine CNC450B-1 lathe mill drill machine/ slant bed cnc lathe
Technical parameters
No. | Item | Unit | specifications |
CNC450B-1 | |||
1 | Max.rotation diameter on lathe’ body | mm | 450 |
2 | piece lengt | mm | 750/1000/1500 |
3 | Max.turning diameter | mm | 400 |
4 | Spindle nose type and code | mm | A8 |
5 | Hydraulic chuck1 | mm | φ250(10") |
6 | Spindle form |
| Servo spindle unit |
7 | Front spindle bore taper |
| 1:20 |
8 | Spindle bore | mm | 60 |
9 | 2- spindle speed range | rpm | 0-4000 |
10 | X/Z/B Rapid traverse | mm/min | 40000 |
11 | Cs1,Cs2 main servo motor power | kW | 11 |
13 | X/Z-axis motor max.torque | N.m | 10 |
15 | B-axis(sub-spindle) motor max.torque | N.m | 15 |
16 | Power specifications | v | 380±10%. 50Hz±1Hz |
17 | turret transfer time (one station) | s | 1.6(horizontal 12) |
18 | Turret transfer repeat positioning accuracy | mm | 0.005" |
19 | X-axis travel | mm | 300 |
20 | Z-axis travel | mm | 1100/1350/1850 |
21 | Tailstock sleeve diameter/travel | mm | 70/100 |
22 | Tailstock tapered bore taper | rpm | 4000 |
24 | hydraulic servo turret form |
| Horizontal 12-station servo power turret |
28 | Knife handle size | mm | 25×25 |
29 | Net weight | kg | 5000 |
30 | Size(L×W×H) | mm | 2700/3000/3500×1650×1900 |
Standard configuration:
CNC system: GSK980TDc
Spindle 3-gears frequency control speed
hydraulic center solid chuck
Horizontal 12-station hydraulic turret
3-axis hard rail
Electric tailstock,hydraulic sleeve
Turning cooling system
Automatic lubrication system
Whole protection system
Select Configuration:
CNC system : SYNTEC , Fanuc systems, Siemens system
Servo spindle unit
Hydraulic hollow chuck
3-axis line rail
Programming electric tailstock
Automatic feeder
Automatic chip conveyor
Automatic pick pieces equipment
Automatic protective door
Loading and unloading robots
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is welcome.
If you are interested in lathe and milling machine CNC450B-1 lathe mill drill machine/ slant bed cnc lathe , welcome to leave a message or send the inquiry to understand the details of machine.
