Cnc Lathe Slant CNC550T Cnc Turning Center /tornos Metal
- qingdao port
- T/T Credit Card PayPal
You May Like
-
Cnc Turning Center CNC250B Cnc Lathe Slant/tornos Metal
-
Tornos Metal CNC550A Cnc Lathe Slant /multi-purpose Lathe Machine
-
Cnc Lathe Slant CNC150B Cnc Turning Center and Tornos Metal
-
Tornos Metal CNC350A Slant Bed Cnc Lathe and Combination Machines
-
Tornos Metal CNC350T Cnc Lathe Slant /multi-purpose Lathe Machine
-
Tornos Metal CNC550B-1 Cnc Lathe Slant /combination Machines
Product Details
| Condition | New | Type | Turning Center | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 550mm | Place of Origin | Shandong, China | |
| Brand Name | HaiShu | Model Number | CNC550T | |
| Voltage | 380v 50hz | Power(W) | 15KW | |
| Dimension(L*W*H) | 4000*1650*1900mm | Weight | 8200kg | |
| Certification | CE ISO TUV | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

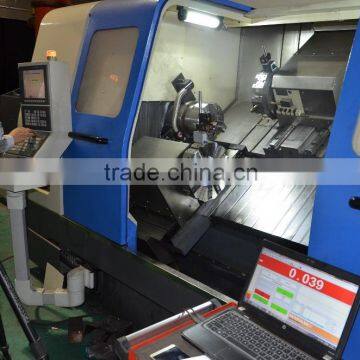

cnc lathe slant CNC550T cnc turning center / tornos metal
Main technical parameters:
No. | Item | Unit | Technical parameters | |
CNC550T | ||||
1 | Maximum turning diameter on lathe’ body | mm | 550 | |
2 | Maximum workpiece length | mm | 650/750/1000 |
|
3 | Maximum turning diameter | mm | 500 | |
4 | Spindle nose type and code | mm | A12 | |
5 | Hydraulic chuck | mm | 2-φ300 (12") | |
6 | Front spindle bore taper |
| 1:20 | |
7 | Spindle bore | mm | 75 | |
8 | Maximum load-bearing chucked components | kg | 500 | |
9 | 2 - servo spindle motor speed | mm/min | 0-4000 | |
10 | Rapid traverse X / Z | mm/min | 40000 | |
11 | CS1; CS2 main servo motor power | kW | 15 | |
12 | X/Z servo motor maximum torque | N.m | 15 | |
13 | Y traval(optional) | mm | -55/+55 | |
14 | Power Specifications | v | 380±10%. 50Hz±1Hz | |
15 | Carrier transfer time (one station) | s | 1.6(Horizontal 12) | |
16 | Carrier transfer repeat positioning accuracy |
| 0.005" | |
17 | X-axis travel | mm | 350 | |
18 | Z-axis travel | mm | 1100/1350/1850 | |
19 | B-axis(sub-spindle) travel | mm | 1400/1650/2150 | |
20 | Y-axis travel | mm | -55/+55 | |
21 | Biaxial dynamic docking concentricity | mm | 0.005 | |
22 | Hydraulic servo turret form |
| Horizontal 12-station power turret | |
23 | Knife handle size | mm | 25×25 | |
24 | Net weight | kg | 8200 | |
25 | Size(L×W×H) | mm | 4000×1650×1900 | |
standard configuration:
CNC system: SYNTEC
Two servo spindle unit
Two hydraulic center solid chuck
Horizontal 12-station hydraulic servo power turret
5-Axis line rail
Turning cooling system
Automatic lubrication system
The whole protection system
Select Configuration:
1. Fanuc/ siemens controller
2. Add Y axis
3. Two Hydraulic hollow chuck
4. Automatic bar feeder
5. Automatic chip conveyor
6. Automatic pick piece device
7. Automatic protection door
8. Loading and unloading robots
9. 220v,...others voltage
If you are interested in cnc lathe slant CNC550T cnc turning center / tornos metal ,welcome to leave a message or send the inquiry to understand the details of machine.
