Home > Products > pipe threading lathe > pipe threading machine CKG130A cnc lathe machine

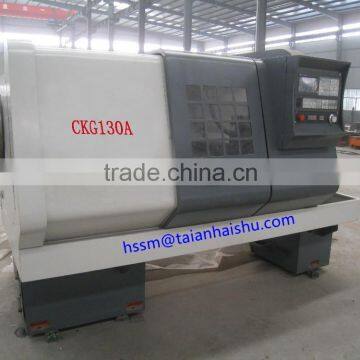

pipe threading machine CKG130A cnc lathe machine
- 30 Set / Sets per Month
- QINGDAO
- T/T Credit Card
You May Like
-
manual lathe machine CA6150 Screw Lathe and cnc lathe
-
automatic pipe threading machine CKG1322A big spindle bore pipe thread machine
-
threading machine CKG160A CNC pipe thread lathe machine with good price
-
threading machine CKG160A CNC pipe thread lathe and mechanical tools names
-
threading machine CKG160A CNC pipe thread lathe and electric pipe threading machine
-
automatic pipe threading machine CKG1322A big spindle bore pipe thread machine and electric pipe threading machine
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 610MM | Place of Origin | Shandong, China | |
| Brand Name | HAISHU | Model Number | CKG130A | |
| Voltage | 380v 50hz | Power(W) | 7500 | |
| Dimension(L*W*H) | 2650*1450*1700mm | Weight | 2600kg | |
| Certification | ISO9001:2008,CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
pipe threading machine CKG130A cnc lathe machine
Project | Unit | Specification |
Lathe Maxswing diameter | mm | φ610 |
Maximum turning length | mm | 1000 |
Maximum processingoutside diameter of pipe | mm | φ127 |
Spindle bore | mm | φ130 |
Number of spindle speeds |
| Servo Promise |
×/ZServo motor torque | N.m | 4/6 |
Chuck form |
| Three-jaw chuck |
Chuck diameter | mm | φ400 |
Turret form |
| Four-station |
Tool section size | mm | 25×25 |
×/ZRapid traverse | m/min | 4/4 |
Tailstock quill diameter | mm | φ75 |
Tailstock quill stroke | mm | 150 |
Tailstock sleeve taper |
| MT5 |
Spindle center to theheightoftherail | mm | 305 |
Main motor |
| Servo motor 7.5KW 3000r/min |
Machine weight | Kg | 2600 |
Machine outline size (L × W× H) | mm | 2650×1450×1700 |
CNC system |
| KND100Ti/GSK980TA(Optional) |
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is welcome.
If you are interested in pipe threading machine CKG130A cnc lathe machine , welcome to leave a message
or send the inquiry to understand the details of machine.
Contact Us
- Taian Haishu Machinery Co., Ltd.
- Contact namebaoling su Chat Now
- Phone86-0538-8606169
- AddressZhouwangzhuang Village, Shankou Town, Daiyue Dist.
