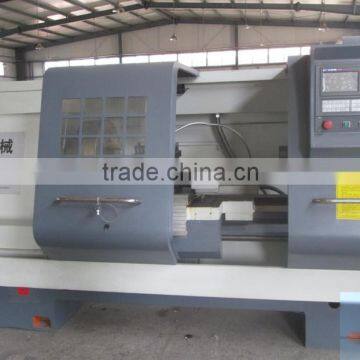

For turn theading lathe CKG1332 cnc pipe thread lathe machine with FANUC , SIMENS system
- 100 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
-
For turn theading lathe CKG1332 CKG1332 E CKG(E) Series cnc pipe threading lathe with FANUC , SIMENS system
-
2015 For turn theading lathe CKG1332 CKG1332 E CKG(E) Series cnc pipe threading lathe with FANUC , SIMENS system
-
2015 For turn theading lathe CKG1332 CKG1332 E CKG(E) SeriesF full automatic threading machine for pipe
-
High quality and low price CKG1332 electric pipe threading machine with FANUC , SIMENS system
-
Threading Machine CKG1322A*1000 big spindle bore pipe threading machine and pipe threading
-
threading machine CKG1327B-1 cnc pipe threading lathe and cnc machine tools
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Automatic | |
| Max. Swing Diameter | 800 | Place of Origin | Shandong, China | |
| Brand Name | Haishu | Model Number | ckg1332 | |
| Voltage | 380v 50hz | Power(W) | 15KW | |
| Dimension(L*W*H) | 3700*1800*1760 | Weight | 4800 | |
| Certification | CE | After-sales Service Provided | Overseas third-party support available |
Product Description
For turn theading lathe CKG1332 cnc pipe thread lathe machine with FANUC , SIMENS system
MAIN FEATURES:
1.The spindle adopts high precision spindle unit , high rotary precision, high speed, outstanding rigidity.
2.High strength base, widen the lathe bed and plate reinforcement is designed to ensure required strong cutting.
3.Machine guide adopts the precision level of preloading liner guide rail with hardness mover 58''.
4.High degree of machine modular design has good configuration option and rooting platform.
5.Optional accessories: The controller can be selected from FANUC, Mitsubishi, Siemens.
3 jaw chuck, specialized equipment tools, spring collet.
SPECIFICATIONS:
Project | Unit | Specification |
Lathe Max swing diameter | mm | φ630 |
Maximum turning length | mm | 1000 |
Maximu processing outside diameter of pipe | mm | φ220 |
Spindle bore | mm | φ225 |
Number of spindle speeds |
| Servo Promise |
X/ZServo motor torque | N.m | 10/15 |
Chuck form |
| Three-jaw chuck |
Chuck diameter | mm | φ500 |
Turret form |
| Four-station ,Vertical |
Tool section size | mm | 32×32 |
X/ZRapid traverse | m/min | 3/3 |
Tailstock quill diameter | mm | φ100 |
Tailstock quill stroke | mm | 250 |
Tailstock sleeve taper |
| MT5 |
Spindle center to theheightoftherail | mm | 315 |
Main motor |
| Servo motor 11KW 3000r/min |
Machine weight | Kg | 5500 |
Machine outline size (L × W× H) | mm | 3600×1750×1900 |
CNC system |
| KND100Ti/GSK980TA(Optional) |
CONFIGURATIONS:
Standard configuration | Select configuration |
1, CNC system: GSK980. 2, Electric turret: vertical four station electric turret. 3,3 jaw manual chuck 4, Automatic lubrication system, Cooling system,Linghten system 5,Standard tools 6,Unit packing list | 1, CNC system: Beijing KND, Japan FANUC, Germany SIEMENS. 2, Electric turret: horizontal 8 station electric turret. 3, Cradle |
More pictures :
