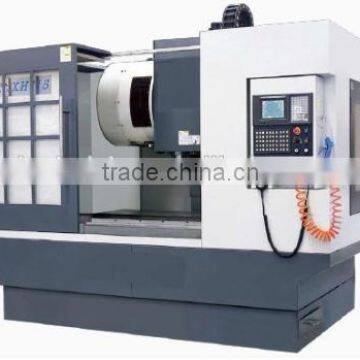

5-axis XK715 cnc milling machine price
- QINGDAO
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HAISHU | Model Number | XK715 | |
| Type | Vertical | CNC or Not | CNC | |
| Voltage | 380V | Power(W) | 7500/11000 | |
| Dimension(L*W*H) | 2500*2600*2300mm | Weight | 4750KG | |
| Certification | ISO9001:2008.CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
5-axis XK715 cnc milling machine price
1. Specifications
Specifications | Units | XK715 |
Table travel (X,Y,Z) | mm | 1000×510×510 |
Table size | mm | 1100×510 |
Number/Width/Distance of T-slot | mm | 5-18-100 |
Max. load of table | kg | 800 |
Distance from spindle nose to table surface | mm | 120-630 |
Distance from spindle axis to column guideway | mm | 600 |
Taper of spindle |
| BT40 |
Spindle speed range | rpm | 60-6000 |
Spindle motor power | kW | 7.5/11 |
Rapid feed speed | mm/min | 12000 |
Cutting feed speed | mm/min | 2.5-4000 |
Positioning accuracy | mm | ±0.015 |
Repeat positioning accuracy | mm | ±0.0075 |
Overall dimension | mm | 2900×2200×2620 |
Machine weight | kg | 5370 |
Standard configurations:
GSK/KND2000M/HUAZHONG 22M Siemens 808D controller system
bearing:NSK 8000rpm speed
strong current:Schneider
RS232 communication interface
Large flow cooling pump
Hardened rail
Ball screw: Taiwan's precision ball screw.
protection: full outer stainless steel inner defense and protection.
Optional:
FANUC 0i mateMD or Siemens 828D.
Geneva Type tool changer mechanical arm tool changers
Forth axis
Auto chip conveyor
3.machine’s working condition and others
Voltage:380V±10% 50Hz±1%
Temperature:-10 ~ 40°C humidity:≤80% air pressure:0.6Mpa
Machine lubricating oil: summer 32# winter 40#
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is welcome.
If you are interested in our products, welcome to leave a message
or send the inquiry to understand the details of machine.
