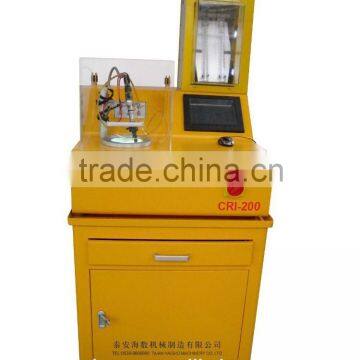

CRI-200 common rail diesel injector test bench

CRI-200  common rail diesel injector test bench

1. main function :

CRI-200 high pressure common rail injector test bench, is Controlled by industrial computer in real time, Windows XP operating system. built common rail injector standard database; , optional touch screen or mouse actions.
can test BOSCHDENSODEPHISIEMNES and other common rail injectors.

The oil quantity  is measured by measuring cylinder

CRI-200  common rail diesel injector test bench has bosch original valve and boch cp1 , cp2 ,cp3 pumps

Its computer interface

2.  ntroduction:

1. The oil quantity is measured by sensor

2.Test data can be stored and print(optional).Built-in standard database of common rail injector, and data can be Free upgraded for users can also be free to add data.

3.human interface, operate more convenient to use

4. The main frame includes aviation aluminum structure and cast iron operating platform

5.It has built-in electrical box and convert box. Short-circuit protection.

6.  CRI-200  common rail diesel injector test bench the maximum pressure is 200Mpa.

7.Automatic closed-loop control rail press accuracy displayed is ±0.1MPa.

8.Setting the parameters of injection curve,pull up current,dynamic current fixed time,keep and maintain time and so on.

 Checking of common rail injector open pressure and atomization quality.

9.Function of high-pressure cleaning of the injector.

10.Function of the ultrasonic cleaning

11.Testing of Start-up oil quantity.

12. high pressure common rail injector test bench  Testing of the common rail injector sealing.

13.Testing of the common rail injector full –load operation.

14.Testing of the common rail injector idling conditions.

15.Testing of the common rail injector pre-injection conditions.

16.Testing of the common rail injector opening conditions.

3.  technical parameters
