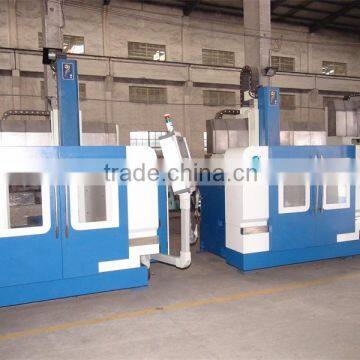

HS series moving beam type dual drive gantry engraving and milling machine
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
torno madera barato DH-1325-2 woodworking machines and cnc wood carving machine
-
industrial wood lathe DH-1325-2 woodworking machines and cnc wood carving machine
-
industrial wood lathe DH-1325-2 cnc wood turning lathe and cnc wood carving machine
-
industrial wood lathe DH-1325-2 wood milling machine and cnc wood carving machine
-
industrial wood lathe DH-1325-2 wood working machine and cnc wood carving machine
-
wood lathe price DH-1325-2 wood working machine and cnc wood carving machine
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HAISHU | Model Number | HS0812/HS1016/HS1420/HS1625 | |
| Type | Horizontal | CNC or Not | CNC | |
| Voltage | 380V 50Hz | Power(W) | 1.3/1.8kw | |
| Dimension(L*W*H) | 2600*2200/3400*2600/4000*3000/4500*3300mm | Weight | 5000/8000/12000/14000 | |
| Certification | ce iso tuv | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
HS series moving beam type dual drive gantry engraving and milling machine
1. Technical Parameters
Model | Unit | HS0812 | HS1016 | HS1420 | HS1625 |
Table size | mm | 820×1050 | 1000×1600 | 1400×2000 | 1600×2500 |
X/Y/Z stroke | mm | 800/1200/500 | 1000/1600/700 | 1400/2000/700 | 1600/2500/700 |
Distance of spindle nose to table | mm | 450-950 | 550-1250 | 300-1000 | 300-1000 |
Gantry width / height | mm | 1100/1000 | 1400/1300 | 1800/1100 | 2000/1100 |
X / Y / Z-axis servo motor power | kw | 0.85×3/1.3 | 1.3/1.3×2/1.3 | 1.8/1.8×2/1.8 | 1.8/1.8×2/1.8 |
Electric spindle power / diameter |
| ER32-5.5kw | 5.5kw/125mm | ER32-5.5kw | ER32-5.5kw |
Max. spindle speed | rpm | 24000 | 24000 | 24000 | 24000 |
positioning accuracy | mm | 0.01/300 | 0.01/300 | 0.01/300 | 0.01/300 |
Repeatability positioning accuracy | mm | 0.01/300 | 0.01/300 | 0.01/300 | 0.01/300 |
Table flatness | mm | 0.03/500 | 0.03/500 | 0.03/500 | 0.03/500 |
Horizontal and vertical verticality | mm | 0.02/500 | 0.025/500 | 0.025/500 | 0.025/500 |
Z-axis verticality | mm | 0.02/500 | 0.025/500 | 0.025/500 | 0.025/500 |
Table load | kg | 5000 | 10000 | 13000 | 15000 |
Electricity demand | KVA | 11.5(380V/50HZ) | 15 (380V/50HZ) | 15 (380V/50HZ) | 18 (380V/50HZ) |
Dimensions (L × W) | mm | 2600×2200 | 3400×2600 | 4000×3000 | 4500×3300 |
Gross | kg | 5000 | 8000 | 12000 | 14000 |
2. Machine features
2.1 The machine tool occupied land is small, load is large, up to 15000kg.
2.2 Weight of " Moving beam " is unchanged, perennial fast run, not easy to damage, save electricity 30%.
2.4 The main components are on the beam.Than the "fixed beam" long use life, and easy maintenance.
4,You can increase the "slope head", mold side processing convenience.
3. Main configuration
3.1 Standard configuration
CNC system:SYNTEC 21MA.
Yaskawa servo drive motor.
Japan THK ball screw.
Japan THK linear guide.
Screw special precision paired bearings.
External suspension electronic handwheel.
Taiwan Delta converter.
High-brightness light-proof.
Automatic lubrication systems.
Cooling water tank.
CNC System Operation Manual.
Toolbox.
3.2 Select Configure
Spain Fagor CNC systems.
Spindle oil cooler machine.
Machine external protective.
Auxiliary table.
BT30 electric spindle.
The fourth axis rotary table.
Slanted head.
If you are interested in HS series moving beam type dual drive gantry engraving and milling machine,welcome to leave a message or send the inquiry to understand the details of machine.
