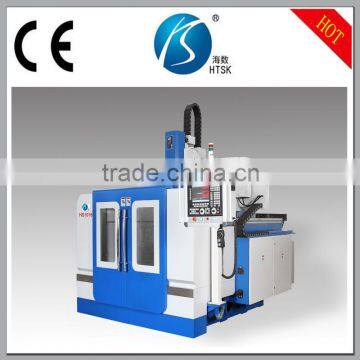

mold carving and milling machine HAISHU Longmen lathe Turning Centers parameters
- 10000 Set / Sets per Month
- QINGDAO
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
carving cnc milling machine HAISHU CNC lathe Chinese manufacturers of turning centers
-
mold carving and milling machine HAISHU CNC machine tool Turning Centers Manufacturers
-
metal mold carving milling machine HAISHU CNC machine tool Turning Centers parameters
-
metal mold carving milling machine HAISHU Longmen lathe Horizontal Turning Center Price
-
mold carving and milling machine HAISHU Longmen lathe Best Price
-
mold carving and milling machine HAISHU CNC machine tool Manufacturer
Product Details
Condition | New | Place of Origin | Shandong, China | |
Brand Name | HAISHU | Model Number | HS1016 | |
Type | Horizontal | CNC or Not | CNC | |
Voltage | 220v/380v | Power(W) | 5.5kw | |
Dimension(L*W*H) | 3400*2600 | Weight | 8000 | |
Certification | CE Certificate | Warranty | One Year | |
After-sales Service Provided | Overseas service center available |
Product Description
mold carving and milling machine HAISHU Longmen lathe Turning Centers parameters
Technical Parameters
Model | Unit | HS1016 |
Table size | mm | 1000×1600 |
X/Y/Z stroke | mm | 1000/1600/700 |
Distance of spindle nose to table | mm | 550-1250 |
Gantry width / height | mm | 1400/1300 |
X / Y / Z-axis servo motor power | kw | 1.3/1.3×2/1.3 |
Electric spindle power / diameter |
| 5.5kw/125mm |
Max. spindle speed | rpm | 24000 |
positioning accuracy | mm | 0.01/300 |
Repeatability positioning accuracy | mm | 0.01/300 |
Table flatness | mm | 0.03/500 |
Horizontal and vertical verticality | mm | 0.025/500 |
Z-axis verticality | mm | 0.025/500 |
Table load | T | 10 |
Electricity demand | KVA | 15 (380V/50HZ) |
Dimensions (L × W) | mm | 3400×2600 |
Gross | kg | 8000 |
2. Machine features
2.1 The machine tool occupied land is small, load is large, up to 13 tons.
2.2 Weight of " Moving beam " is unchanged, perennial fast run, not easy to damage, save electricity 30%.
2.4 The main components are on the beam.Than the "fixed beam" long use life, and easy maintenance.
4,You can increase the "slope head", mold side processing convenience.
3. Main configuration
3.1 Standard configuration
CNC system:SYNTEC 21MA.
Yaskawa servo drive motor.
Japan THK ball screw.
Japan THK linear guide.
Screw special precision paired bearings.
External suspension electronic handwheel.
Taiwan Delta converter.
High-brightness light-proof.
Automatic lubrication systems.
Cooling water tank.
CNC System Operation Manual.
Toolbox.
3.2 Select Configure
Spain Fagor CNC systems.
Spindle oil cooler machine.
Machine external protective.
Auxiliary table.
BT30 electric spindle.
The fourth axis rotary table.
Slanted head.
CNC machine tool exports Packing: Export Packing Machine fumigation
Transportation: If the customer does not have special requirements, CNC machine tools and engine test equipment exports, usually automotive logistics transport to Qingdao port, transport to the nearest port customer specified by ship.
Thank you for your interest in our production of CNC machine tool products, in order to protect your legal rights, from you for purchasing our CNC machine tools worries, we like all of our customers to purchase CNC machine tool products, on product quality and after-sales service to make the following committed to:
1, three bags a year, life-long service
2, free training operators
3, receiving customer feedback, provide solutions within 24 hours
4, CNC equipment parts are used in the world and China's well-known brand manufacturers
5, the company exports are the new equipment CNC equipment, packaging before the error, have good debugging, fully meet customer requirements, before allowing shipment
Number Taian Hai Machinery Manufacturing Co., Ltd. (Tai'an City Hite machinery manufacturing limited liability company) is manufacturing of CNC machine tools and engine testing equipment professional enterprises, scientific research, production and marketing of high-tech enterprises. The company's CNC machine tools and test equipment division division, has passed the ISO9001: 2008 international quality management system certification and the European CE certification. Strong technical force, has a group of young and promising engaged in CNC machine tools and test equipment design and manufacturing, electrical design and application of numerical control technology and software development professional and technical personnel. The use of advanced two-dimensional and three-dimensional CAD computer-aided design, product innovation, equipment, numerical control, management information, has become the domestic industry technology leader.
CNC machine tools are: CNC lathes, turning centers, machining centers, CNC lathes instrumentation, CNC lathes, CNC machine tools, automatic feeding CNC lathes, lathes, automatic lathes, mini lathes, woodworking lathes, woodworking tools, small machine tools, CNC light machine tools, machine tools, precision machine tools. Lathe-ray machines, precision lathes, small CNC lathes, CNC lathes and other economy.
Test equipment are: injection pump test bench, injector test bench, common rail injector test bench, common rail system test bench and so on.
Number Taian Hai Machinery Manufacturing Co. NC machine model is complete, it can be customized according to customer all kinds of special tools workpiece
