Home > Products > Stacker > 1600kg Full free 3-Stage Narrow legs 4500mm Electric Pallet Stacker CDD16-950

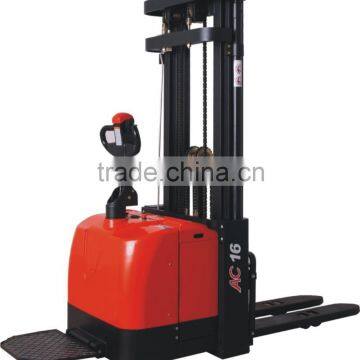

1600kg Full free 3-Stage Narrow legs 4500mm Electric Pallet Stacker CDD16-950
USD $3,000 - $7,000
/ Piece
2 Pieces(Min.Order)
- Shanghi
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | Yi-Lift | Model Number | CDD16-950 series | |
| Type | Powered Pallet Truck | Power Souce | AC Motor | |
| Rated Loading Capacity | 1600kg | Max. Lifting Height | 4500mm | |
| Min. Lifting Height | 85mm | Fork Length | 1150mm | |
| Fork Width | 1150/185/55mm | Overall Dimensions | 2105**957*2085mm | |
| Certification | ISO9001 | After-sales Service Provided | No overseas service provided |
Product Description
1600kg Full free 3-Stage 4500mm Electric Pallet Stacker CDD16-950
| Feature | |||
| 1 | Model | CDD16 | |
| 2 | Configuration No. | 950 | |
| 3 | Type | Narrow legs | |
| 4 | Mast type | Full free 3-Stage | |
| 5 | Load capacity | kg | 1600 |
| 6 | Load center | mm | 600 |
| 7 | Wheel base | mm | 1375 |
| 8 | Operating type | Walkie / Stand On | |
| Wheels | |||
| 9 | Wheels type | PU | |
| 10 | Wheel quantity Driving wheel/Balance wheel/Bearing wheel | 1/2/4 | |
| Dimension | |||
| 11 | Standard lift height | mm | 4500 |
| 12 | Lowered fork height | mm | 85 |
| 13 | Fork size(length/width/thickness) | mm | 1150/185/55 |
| 14 | Overall length | mm | 2105/2525 |
| 15 | Overall width | mm | 957 |
| 16 | Max extend height | mm | 5000 |
| 17 | Mast lowered height | mm | 2085 |
| 18 | Min.Turning radius | mm | 1630/2040 |
| 19 | Min.Aisle width for pallets 800×1200 | mm | 2230/2625 |
| 20 | (1000×1200,1200) Min.Aisle width for pallets 1000×1200 | mm | 2260/2650 |
| 21 | Min.ground clearance | mm | 30 |
| Performance | |||
| 22 | Travel speed,laden/unladen | km/h | 5/5 |
| 23 | Lift speed,laden/unladen | mm/s | 130/230 |
| 24 | Lowering speed,laden/unladen | mm/s | 130/230 |
| 25 | Gradeability,laden/unladen | % | 5/7 |
| Electrical configuration | |||
| 26 | Drive motor / Lift motor /Steering motor | KW | AC1.5/DC3/DC0.15 |
| 27 | Battery voltage | V | 24 |
| 28 | Battery capacity | Ah | 280 |
| 29 | Brake | Electromagnetic / Regenerative | |
| 30 | Controller | CURTIS 1230 | |
| Weight | |||
| 31 | Battery weight | kg | 235 |
| 32 | Service weight with battery | kg | 1578 |
