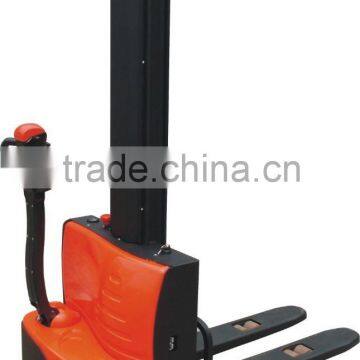

Semi Electric Stacker big view CDD10-080

FOB Price

USD $1,000 - $2,000 / Piece

2 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	YI-LIFT	Model Number	CDD10-080
Type	Powered Pallet Truck	Power Souce	DC Motor
Rated Loading Capacity	1000kg	Max. Lifting Height	1600/1950mm
Min. Lifting Height	85mm	Fork Length	1150mm
Fork Width	16347902055	Overall Dimensions	1580*800
Certification	CE/ISO9001	After-sales Service Provided	No overseas service provided

Feature	Unit
Model		CDD10
Configuration No.		080
Type		Narrow legs
Mast type		Single stage
Load capacity	kg	1000
Load center	mm	600
Wheel base	mm	1052
Operating type		Walkie
Wheels
Wheels type		PU
Wheel quantity Driving wheel/Balance wheel/Bearing wheel		1/1/4
Dimension
Standard lift height	mm	1600/1950
Max extend height	mm	1985/2335
Mast lowered height	mm	2065/2240
Lowered fork height	mm	90
Fork size(length/width/thickness)	mm	1150(1220)/185/55
Overall length	mm	1634
Overall width	mm	790
Outside width between forks	mm	550/600/650/685
Inside width between forks	mm	180/230/280/315
Min.Turning radius	mm	1262
Min.Aisle width for pallets 800×1200	mm	1841
Min.Aisle width for pallets 1000×1200	mm	1883
Min.ground clearance	mm	30
Performance
Travel speed,laden/unladen	km/h	3/3.5
Lift speed,laden/unladen	mm/s	130/230
Lowering speed,laden/unladen	mm/s	130/230
Gradeability,laden/unladen	%	5/7
Electrical configuration
Drive motor / Lift motor /Steering motor	KW	DC0.63/DC2.0
Battery voltage	V	24
Battery capacity	Ah	70
Brake		Electromagnetic / Regenerative
Controller
Weight
Battery weight	kg	48
Service weight with battery	kg	460
