Changzhou Yi-Lift Import And Export Co., Ltd.: Changzhou, Jiangsu, China; Main products: Handling equipmentPallet truck, Lift table, Drum truck, Stacker, Pallet truck with scale, Roller skates

Home > Products > Stacker > 2 stage 3000mm AC control Electric Pallet Stacker CDD12-030

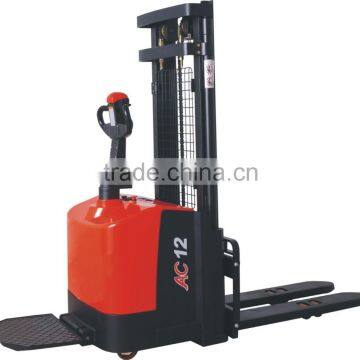

2 stage 3000mm AC control Electric Pallet Stacker CDD12-030

FOB Price

USD $3,000 - $5,000 / Piece

2 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	Yi-Lift	Model Number	CDD12-030 series
Type	Powered Pallet Truck	Power Souce	DC Motor
Rated Loading Capacity	1200kg	Max. Lifting Height	1400mm-3300mm
Min. Lifting Height	85mm	Fork Length	1150mm
Fork Width	1150/185/55mm	Overall Dimensions	19938121980mm
Certification	ISO9001	After-sales Service Provided	No overseas service provided

2 stage 3000mm Electric Pallet Stacker CDD12-030

Electric Stacker

	Feature
1	Model		CDD12
2	Configuration No.		030
3	Type		Narrow legs
4	Mast type		2-Stage STD
5	Load capacity	kg	1200
6	Load center	mm	600
7	Wheel base	mm	1270
8	Operating type		Walkie / Stand On
	Wheels
9	Wheels type		PU
10	Wheel quantity Driving wheel/Balance wheel/Bearing wheel		1/2/4
	Dimension
11	Standard lift height	mm	3000
12	Lowered fork height	mm	85
13	Fork size(length/width/thickness)	mm	1150/185/55
14	Overall length	mm	1993/2413
15	Overall width	mm	812
16	Max extend height	mm	3500
17	Mast lowered height	mm	1980
18	Min.Turning radius	mm	1525/1935
19	800×1200,1200) Min.Aisle width for pallets 800×1200	mm	2130/2520
20	(1000×1200,1200) Min.Aisle width for pallets 1000×1200	mm	2160/2540
21	Min.ground clearance	mm	30
	Performance
22	Travel speed,laden/unladen	km/h	5/5
23	Lift speed,laden/unladen	mm/s	130/230
24	Lowering speed,laden/unladen	mm/s	130/230
25	Gradeability,laden/unladen	%	5/7
	Electrical configuration
26	Drive motor / Lift motor /Steering motor	KW	AC1.5/DC3/DC0.15
27	Battery voltage	V	24
28	Battery capacity	Ah	210
29	Brake		Electromagnetic / Regenerative
30	Controller		CURTIS 1230
	Weight
31	Battery weight	kg	190
32	Service weight with battery	kg	1110
