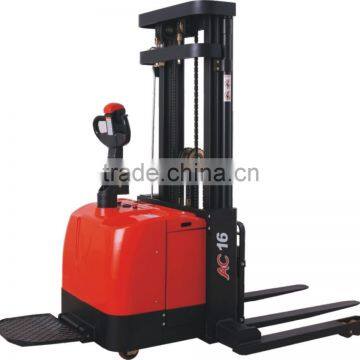

4500mm Electric Pallet Stacker CDD16-960 0630

FOB Price

USD $3,000 - $7,000 / Piece

2 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	Yi-Lift	Model Number	CDD16-960 series
Type	Powered Pallet Truck	Power Souce	AC Motor
Rated Loading Capacity	1600kg	Max. Lifting Height	4500mm
Min. Lifting Height	55mm	Fork Length	1070mm
Fork Width	1070/100/40mm	Overall Dimensions	2073*14702085mm
Certification	ISO9001	After-sales Service Provided	No overseas service provided

4500mm Electric Pallet Stacker CDD16-960 0630

	Feature
1	Model		CDD16
2	Configuration No.		960
3	Type		Wide legs
4	Mast type		Full free 3-Stage
5	Load capacity	kg	1600
6	Load center	mm	600
7	Wheel base	mm	1375
8	Operating type		Walkie / Stand On
	Wheels
9	Wheels type		PU
10	Wheel quantity Driving wheel/Balance wheel/Bearing wheel		1/2/4
	Dimension
11	Standard lift height	mm	4500
12	Lowered fork height	mm	55
13	Fork size(length/width/thickness)	mm	1070/100/40
14	Overall length	mm	2073/2493
15	Overall width	mm	1470
16	Max extend height	mm	5000
17	Mast lowered height	mm	2085
18	Min.Turning radius	mm	1630/2040
19	Min.Aisle width for pallets 800×1200	mm	2230/2625
20	(1000×1200,1200) Min.Aisle width for pallets 1000×1200	mm	2260/2650
21	Min.ground clearance	mm	50
	Performance
22	Travel speed,laden/unladen	km/h	5/5
23	Lift speed,laden/unladen	mm/s	130/230
24	Lowering speed,laden/unladen	mm/s	130/230
25	Gradeability,laden/unladen	%	5/7
	Electrical configuration
26	Drive motor / Lift motor /Steering motor	KW	AC1.5/DC3/DC0.15
27	Battery voltage	V	24
28	Battery capacity	Ah	280
29	Brake		Electromagnetic / Regenerative
30	Controller		CURTIS 1230
	Weight
31	Battery weight	kg	235
32	Service weight with battery	kg	1648
