Particle Board Manufacturer/Chip Board Making Machine/PB Machine Made in China

Particle board production line

Particle board plant

Chipboard production line

Chipboard plant

Bagasse based particle board manufacturing line

1. The following is our company information:

2. The following is produce craft flow:

 ^{Partcle board is made from small-diameter wood, wood branches, wood residues, saw dust, furnitue leftovers, phragmites and bagasse, etc, and via Chip preparation, Drying & screening, Glue applying, Forming and hot press, Cutting size, and Sanding, etc. Finished boards can be used for furniture, building, packing, vehicle and sheep decoration and lamination.}

1). Chip preparation section

       Raw material is reduced into qualified chips by the drum chipper, then the chips are transported to the chip silo, and then infeed to the knife-ring flaker by which the chips are turned to flakes, then the  flake stored in wet flake silo.

^{2). Drying and sifting section
     The flakes discharged from the wet flake silo are conveyed to the Three passage hot-air dryer. Qualified core flakes are stored in core flake silo; oversize flakes are send to double-stream mill to be re-crushing, and transported to surface flake silo.}

^{3). Glue regulating and applying section
     After scaled, the core and surface flakes are to be effectively  and uniformly mixed with qualified glue independently in their glue blenders respectively.}

^{4). Forming and hot-pressing section
    The surface and core flakes are sent into Diamond-roller classic forming machine, and forming on the mat conveyor uniformly. After processes of metal remover, Multi-roller pre-press, lengthwise saw, cross saw, accelerate conveyor, scaling conveyor, storing conveyor and loading conveyor, mats are transported to carrier and then to hot press. Rough boards after pressing are pushed to unloader via pallet.}

^{5).Cooling and sizing section
    The rough board is conveyed to star-cooler for cooling, then the rough board goes through side trimming sawand become  a qualified particle-board, stacked on the hydraulic lift.}

^{6). Sanding Section
    The board are sanded, checked and stored. And need 2sets sanding machine, one is 2-head sanding machine; another one is 4-head sanding machine. And sanding machine brand is Sufoma, which is best quality in China.}

3. The following is brand of import parts:

1). PLC control is used in whole line. PLC brand is Ormon or Mitsubishi (Original Janpan)

2). All bearings are SKF brand (Original Sweden)

3). All hydraulic valves are Rexroth brand (Original Germany)

4). All frequency changers are ABB brand (Original Sweden)

5). All motors are Huali brand, which is best quality in China.

6). All hardwares are reaching to ISO international standard, such as, nut, bolt, chain, sprocket, pulley, etc.

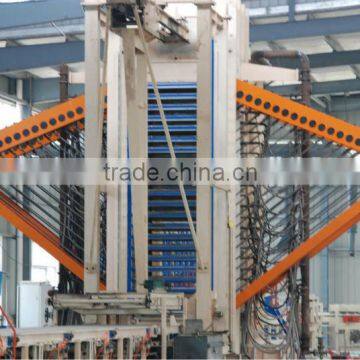

4. The following is some photos of main machinery of particle board production line:
