Home > Products > RFID Card Reader > 6V-14V Weigand 26 EM-ID 125khz Waterproof IP65 Rfid Smart Door Access Control With Card Reader

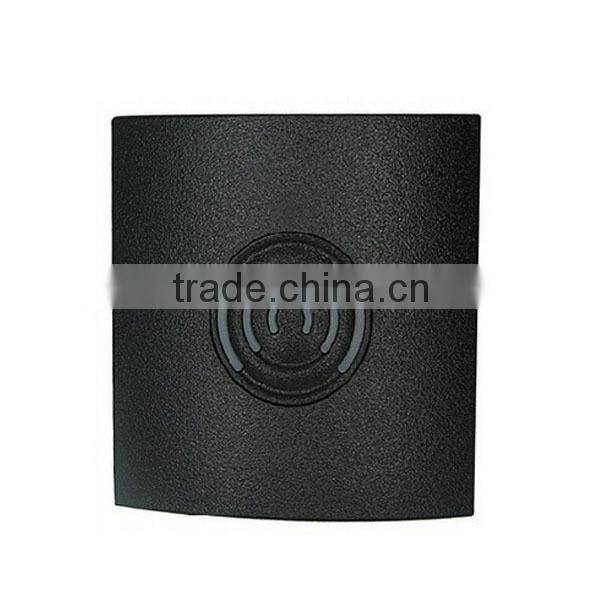

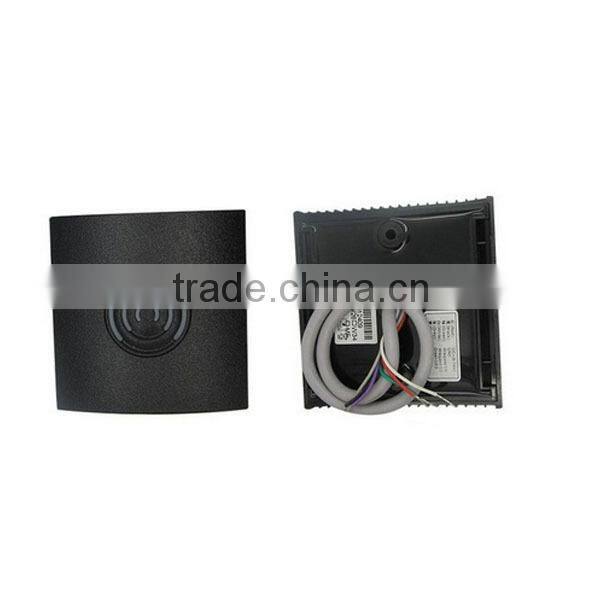

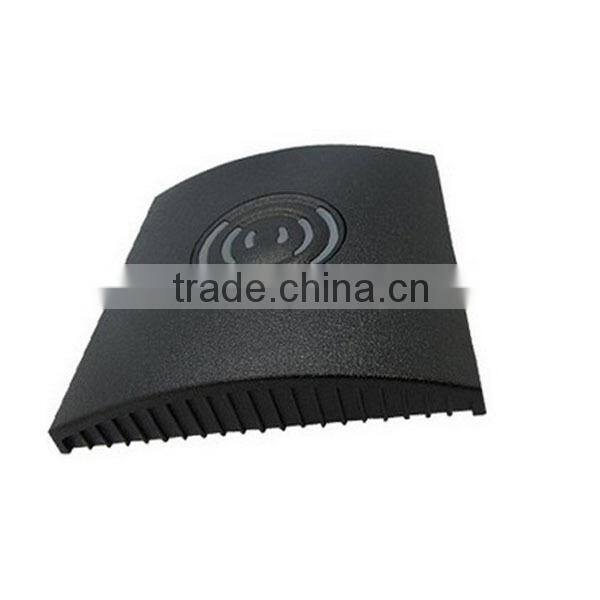

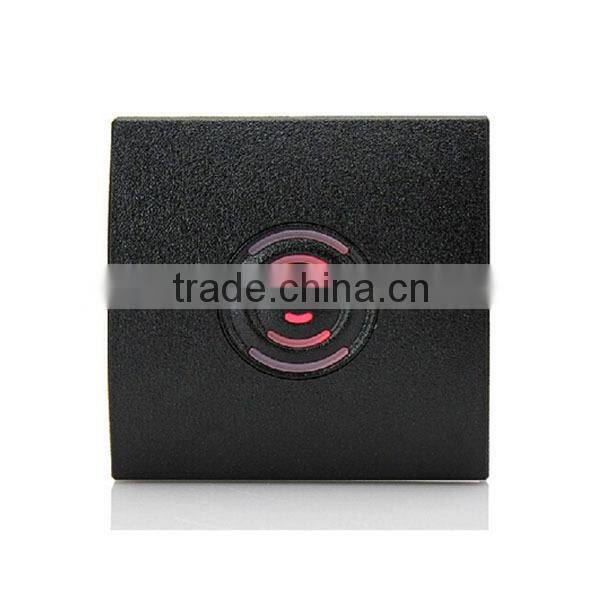

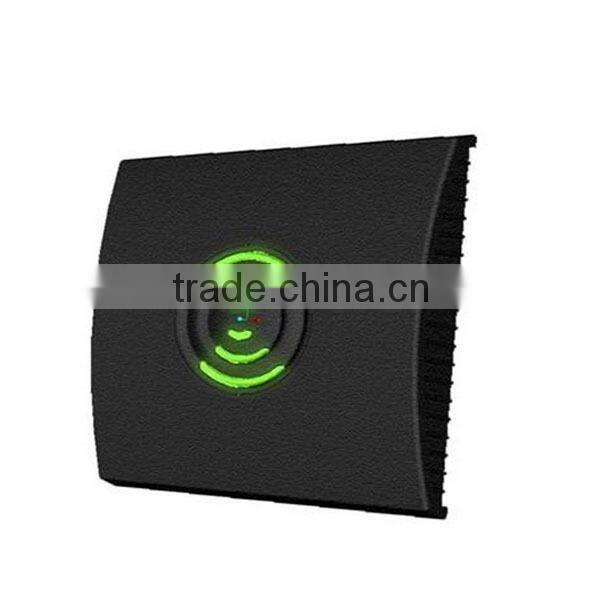

6V-14V Weigand 26 EM-ID 125khz Waterproof IP65 Rfid Smart Door Access Control With Card Reader
- shenzhen
- Credit Card
You May Like
-
Long Distance 15m UHF RFID Smart Chip Card Reader
-
New 13.56mhz mf Iso14443a Rfid Reader Writer For Program Card Number in PC
-
1m Middle Range Rfid Reader Proximity 125Khz Reader With Wiegand26/34 Interface
-
UHF Long Range 15m RFID Reader , RFID Card Frequency 860Mhz~960MHz
-
Wiegand Singnal Proximity RFID Card Reader With Keypad
-
Metal RFID Access Control Card Reader for Office,home, Apartment
Product Details
| Place of Origin | Guangdong, China | Brand Name | Joney | |
| Model Number | JY-A-H201 |
Product Description
Further information about our products , please add my skype : joneytech_sales01
6V-14V weigand 26 EM-ID 125khz Waterproof IP65 rfid Smart door access control with card reader
Features:
• 125KHz Proximity/13.56MHz MF Card Reader
• Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
• 26/34bit Wiegand (default)
• Easy to install on Metal Door Frame or Mullion
• External LED Control
• External Buzzer Control
• Indoor / Outdoor Operation
• Solid Epoxy Potted
• Waterproof IP65
• Reverse Polarity Protection
Connection :
Can't work alone,need work with access control panel
Specifications:
|
| |
Read Range | Up to 10CM | Up to 5CM |
Reading Time (Card) | ≤300ms | |
Power / Current | DC 6-14V / Max.70mA | |
Input Port | 2ea (External LED Control, External Buzzer Control) | |
Output Format | 26bit Wiegand (default) | 34bit Wiegand (default) |
LED Indicator | 2 Color LED Indicators(Red and Green) | |
Beeper | Yes | |
Operating Temperature | -20° to +65°C | |
Operating Humidity | 10% to 90% relative humidity non-condensing | |
Color | Black | |
Material | ABS+PC with texture | |
Dimension | 84.5*44*16.8 | |
Weight | 55g | |
Index of Protection | IP65 | |
Package includes:
1 x Installation Kit
1 x Installation Fixed Label
1 x User Manual
Note:

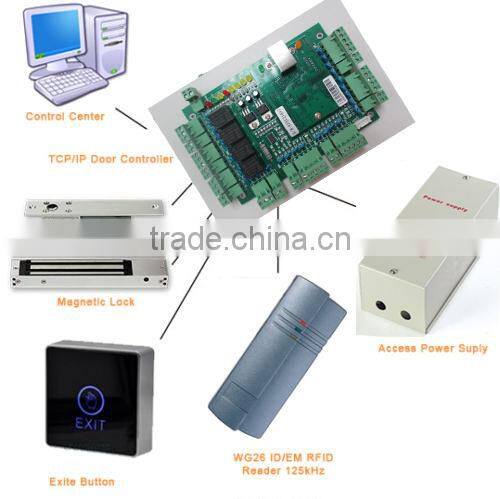

Access control board, power supply,exite button,Lock and other props shown in the picture not included
Please notice that our wiegand 26 reader can't be compatible with some encrypted cards, such as HID, Cobra, APCiK etc
Need more accessories to compose of the complete access control system, please see contact me .
