PVC Plastic Coated Copper Stranded Solid Electric Wire Cable 2.5mm 4mm 6mm 10mm
- Shanghai Qingdao Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | BEI HOU | |
| Model Number | BV | Type | Insulated | |
| Application | Other, household, office | Conductor Material | Copper | |
| Conductor Type | Solid | Insulation Material | PVC |
Product Description

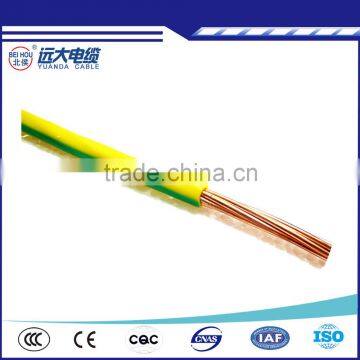

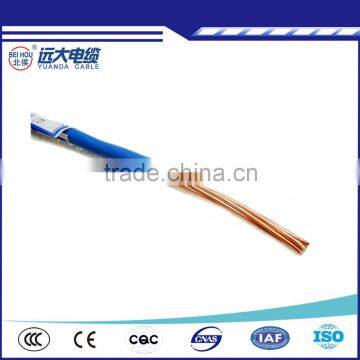

PVC plastic coated copper stranded solid electric wire cable 2.5mm 4mm 6mm 10mm
The product is manufactured according to the stand of GB12706 or IEC,BS,DIN and ICEA upon request.
Applications:
The product is suitable for power installation fixed wiring or flexible connection for electrical appliances with rated voltage up to and including 450/750V respectively.
Operating characteristics:
Rated power-frequency voltage Uo/U:450/750V; 300/500V and 300/300V
Max. permissible continuous operating temperature of conductor:
227 IEC 07 (BV-90)------------90oC
227 IEC 08 (BV-90)------------90oC
For other types------------------70oC
The ambient temperature under installation should not below 0.
The bending radius of cable:
D≤25mm----------≥4D
D>25mm----------≥6D
(D-diameter of the cable)
Nominal Section (mm2) | No./Diameter (mm) | Max. Overall Diameter(mm) | Copper Weight (kg/100m) | Plastic Weight (kg/100m) | Total Weight (kg/100m) |
0.75² | 1/0.97 | 2.25 | 0.66 | 0.48 | 1.14 |
1² | 1/1.13 | 2.40 | 0.89 | 0.53 | 1.42 |
1.5² | 1/1.38 | 2.90 | 1.33 | 0.75 | 2.08 |
2.5² | 1/1.78 | 3.4 | 2.2 | 1.1 | 3.16 |
4² | 1/2.25 | 3.9 | 3.54 | 1.31 | 4.73 |
6² | 1/2.76 | 4.4 | 5.33 | 1.42 | 6.72 |
10² | 7/1.35 | 6.2 | 9.02 | 2.6 | 11.7 |
16² | 7/1.70 | 7.2 | 14.3 | 3.0 | 17.3 |
25² | 7/2.14 | 9.0 | 22.7 | 4.8 | 27.5 |
35² | 7/2.52 | 10.1 | 31.4 | 5.6 | 37 |
50² | 19/1.78 | 11.9 | 42.8 | 7.5 | 50.3 |
70² | 19/2.14 | 13.7 | 62 | 8.5 | 70.5 |
95² | 19/2.52 | 16.0 | 85.7 | 11.3 | 97 |
120² | 37/2.03 | 17.6 | 108.4 | 12.6 | 121 |
150² | 37/2.25 | 19.5 | 133.2 | 15.8 | 149 |
185² | 37/2.52 | 22 | 167.1 | 20.4 | 187.5 |
240² | 61/2.24 | 25 | 218.7 | 26.8 | 245.5 |
300² | 61/2.50 | 27.5 | 271.5 | 29.0 | 300.5 |
400² | 61/2.85 | 31 | 352.5 | 35.8 | 388.3 |
Type | Name |
227 IEC 01 (BV) | Single-core non-sheathed cable with solid conductor for general purposes |
227 IEC 02 (RV) | Single-core non-sheathed cable with flexible conductor for general purposes |
227 IEC 05 (BV) | Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 70oC |
227 IEC 06 (RV) | Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 70oC |
227 IEC 07 (BV-90) | Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 90oC |
227 IEC 08 (RV-90) | Single-core non- sheathed cable with flexible conductor for internal wiring for a conductor temperature of 90oC |
227 IEC 10 (BVV) | Light PVC sheathed cable |
227 IEC 42 (RVB) | Flat non-sheathed flexible cable |
227 IEC 52 (RVV) | Light PVC sheathed flexible cable |
227 IEC 53 (RVV) | Ordinary PVC sheathed flexible cable |
227 IEC 74 (RVVYP) | Oil-proof PVC sheathed, screened flexible cable |
227 IEC 75 (RVVY) | Oil-proof PVC sheathed, non screened flexible cable |

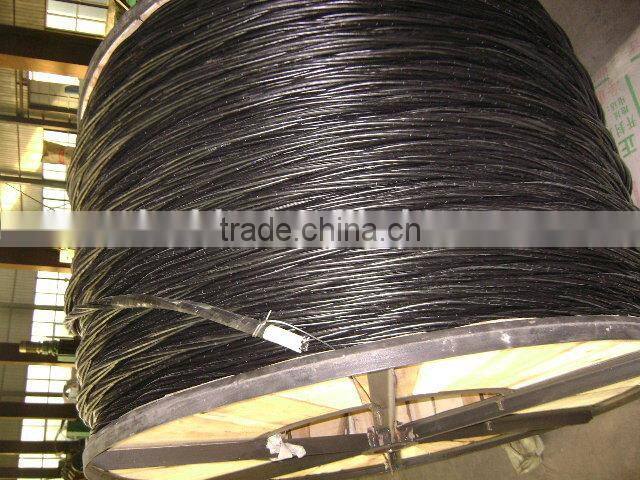

1).Wrapped in rolls/coils/rings with Plastic film for small diameter cables such as building wires.

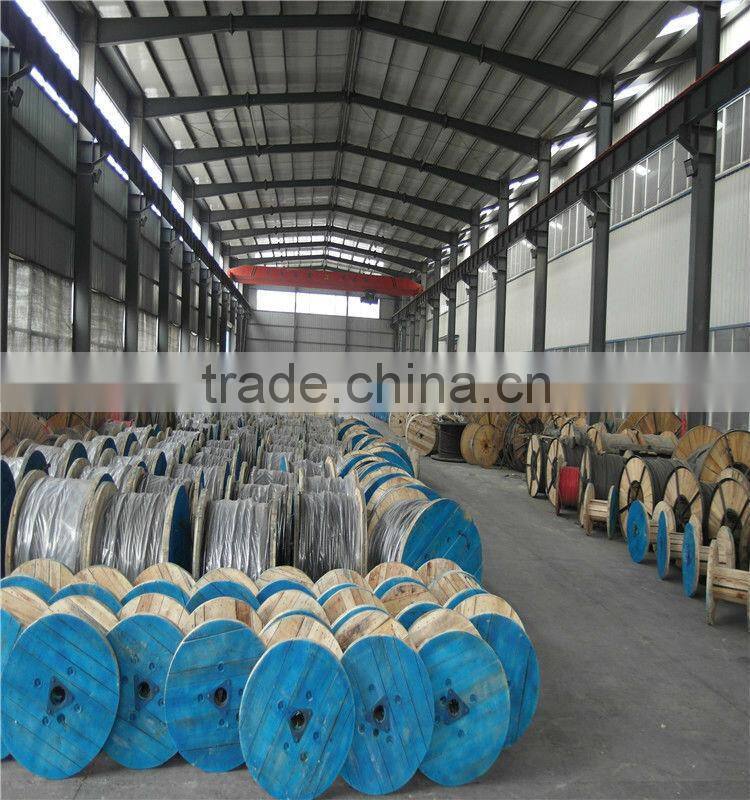

2).Treated wooden/steel-wooden drums for big diameter cables.
3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
Packaging: In coils, wooden drums, steel drums or steel-wooden drums.
Shipping:
1.Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).
2. Large quantity will be shipped by sea.

1. We are factory, and raw material are produced by ourself.
2. OEM service available based on official & legal authorization.
3. Strict quality control system.
4. Faster lead time than our competitors.
5. Excellent quality with reasonable price.
6. Strong technical support (technical data, drawing, etc.)
7. Cable solutions to your particular requirements.
8. Free sample is available with economic express fee.

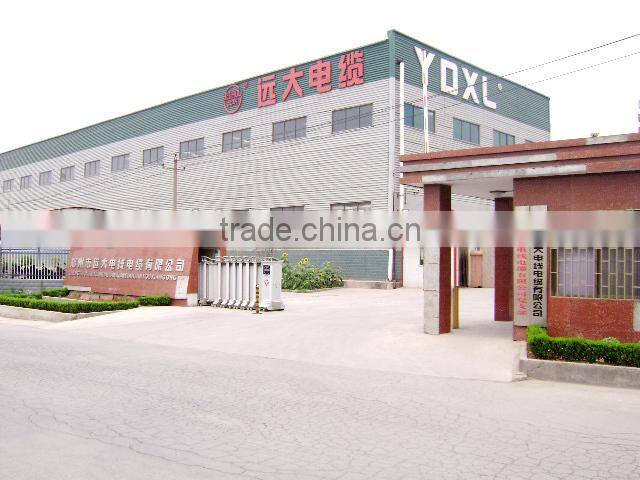

Established: 1996.
Factory area: 60,000 square meters, and 40,000 square meters for building area.
Fixed assets: USD 200 million.
No.of stuff : over 1,000.
Annual output: 100,000 tons.
Certificates: IEC, ISO 9001, ISO 14001, CCC, BV, JIS, UL, BS, OHSAS 18001, TUV, CE
CB and so on.
Workshops: rubber cable workshops, conductor workshop, XLPE cable workshop, electric cable workshop, special cable workshop, and workshops for telephone wire , TV lines and parvicostellae.
Zhengzhou Yuanda Cable Co. Ltd. located in the middle of China, can deliver qualified cables and wires in very short lead time for each clients.
Yuanda Cable Products:
1. XLPE Power Cables
2. Building Wires & PVC Cables
3. Rubber &Welding Cables
4. Flame- Retardant/LSZH Cables
5. Aerial Bundled Cable (ABC)
6. Control Cables
7. Aerial Cables
8. CAT5E,CAT6 Network Cable
10. Rubber Cables
11. Plastic Insulated Cables
12. Telephone and TV lines
13. Sockets and Switches
14. Cables and Wires customized
If you have any demands or requirements, please do not hesitate to contact us. Our company will provide best services for you.
Q1: Are you a factory or trading company?
A: Zhengzhou Yuanda Cable Co. Ltd (Headquarter) is a large manufacture in the middle of China with 1, 000 staff.
Q2: Where is your company? How can I visit there?
A: Our Company is located in Room 2304, Building 1, No. 157 Fuyuan Road, Jinshui District, Zhengzhou, Henan, China. Visitors can come to our company by train to Zhengzhou station or by plane to Zhengzhou Airport.
Q3:How can I get samples?
A: Free Samples will be sent to customers by economic international express if available, Freight Charge will be normally on buyer’s account.
Q4:How does your factory do regarding quality control?
A: Zhengzhou Yuanda Cable Co., Ltd. has passed ISO 9001 and ISO 14001, CCC certificates. Each products must be went through professional test. We promise to provide qualified cables.
Q5: Which payment terms do you accept?
A: The payment term varies with different price and total value of each contract.
Common terms are as follows:
a.100% TT advance for small amount orders.
b. T/T 30% deposit, and balance payment negotiable accordingly.
Other payment terms also can be available by both sides agreement.
Q6: Have you ever exported cables to other countries?
A: Yuanda Cables have been supplied to many countries especially in Middle East,Middle Asia,South America,Southeast Asia countries and regions etc.
Q7: What is your MOQ?
A: MOQ varies as per the cable type.Normally 500 meters for big diameter cables. Please feel free to contact us directly for detail information if you have any specific requirements.
