High Quality Electrical Cables and Wires With Copper Conductor
- Shanghai Qingdao Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
16mm Electrical Wire Flat Cable With Copper Conductor
-
Parallel Wires Cables PVC Insulated Wire and Cable
-
Building Wire 35mm2 Copper Electrical Cable Used for Household
-
High Quality 25mm2 Copper Cable Used for Household
-
ZR - BVC2.5 mm Low Halogen Flame Retardant PVC Insulated Wire (double Color)
-
ZR - BV 4mm Square Low Halogen Flame Retardant PVC Insulated Wire
Product Details
| Place of Origin | Henan, China | Brand Name | BEI HOU | |
| Model Number | BV | Type | Insulated | |
| Application | Other, household, office | Conductor Material | Copper | |
| Conductor Type | Solid | Insulation Material | PVC |
Product Description

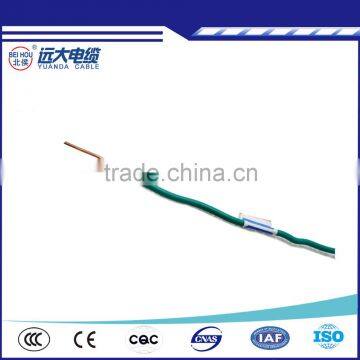

High quality electrical cables and wires with copper conductor
The product is manufactured according to the stand of GB12706 or IEC,BS,DIN and ICEA upon request.
Applications:
The product is suitable for power installation fixed wiring or flexible connection for electrical appliances with rated voltage up to and including 450/750V respectively.
Operating characteristics:
Rated power-frequency voltage Uo/U:450/750V; 300/500V and 300/300V
Max. permissible continuous operating temperature of conductor:
227 IEC 07 (BV-90)------------90oC
227 IEC 08 (BV-90)------------90oC
For other types------------------70oC
The ambient temperature under installation should not below 0.
The bending radius of cable:
D≤25mm----------≥4D
D>25mm-----------≥6D
(D-diameter of the cable)
Nominal Section (mm2) | No./Diameter (mm) | Max. Overall Diameter(mm) | Copper Weight (kg/100m) | Plastic Weight (kg/100m) | Total Weight (kg/100m) |
0.75² | 1/0.97 | 2.25 | 0.66 | 0.48 | 1.14 |
1² | 1/1.13 | 2.40 | 0.89 | 0.53 | 1.42 |
1.5² | 1/1.38 | 2.90 | 1.33 | 0.75 | 2.08 |
2.5² | 1/1.78 | 3.4 | 2.2 | 1.1 | 3.16 |
4² | 1/2.25 | 3.9 | 3.54 | 1.31 | 4.73 |
6² | 1/2.76 | 4.4 | 5.33 | 1.42 | 6.72 |
10² | 7/1.35 | 6.2 | 9.02 | 2.6 | 11.7 |
16² | 7/1.70 | 7.2 | 14.3 | 3.0 | 17.3 |
25² | 7/2.14 | 9.0 | 22.7 | 4.8 | 27.5 |
35² | 7/2.52 | 10.1 | 31.4 | 5.6 | 37 |
50² | 19/1.78 | 11.9 | 42.8 | 7.5 | 50.3 |
70² | 19/2.14 | 13.7 | 62 | 8.5 | 70.5 |
95² | 19/2.52 | 16.0 | 85.7 | 11.3 | 97 |
120² | 37/2.03 | 17.6 | 108.4 | 12.6 | 121 |
150² | 37/2.25 | 19.5 | 133.2 | 15.8 | 149 |
185² | 37/2.52 | 22 | 167.1 | 20.4 | 187.5 |
240² | 61/2.24 | 25 | 218.7 | 26.8 | 245.5 |
300² | 61/2.50 | 27.5 | 271.5 | 29.0 | 300.5 |
400² | 61/2.85 | 31 | 352.5 | 35.8 | 388.3 |

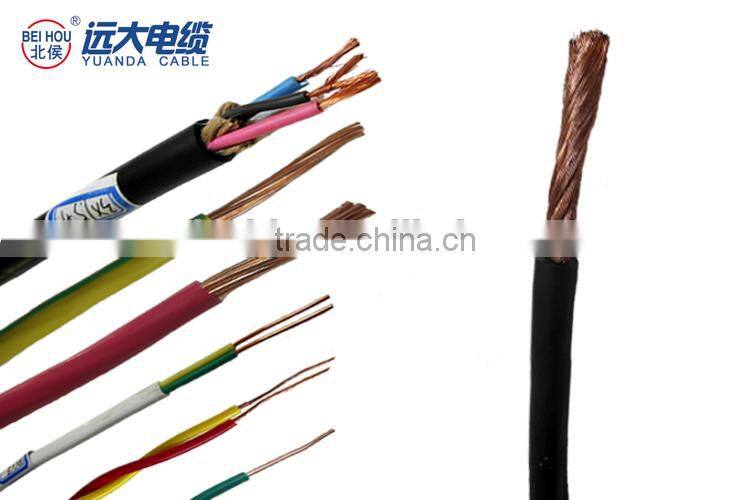

Type | Name |
227 IEC 01 (BV) | Single-core non-sheathed cable with solid conductor for general purposes |
227 IEC 02 (RV) | Single-core non-sheathed cable with flexible conductor for general purposes |
227 IEC 05 (BV) | Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 70oC |
227 IEC 06 (RV) | Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 70oC |
227 IEC 07 (BV-90) | Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 90oC |
227 IEC 08 (RV-90) | Single-core non- sheathed cable with flexible conductor for internal wiring for a conductor temperature of 90oC |
227 IEC 10 (BVV) | Light PVC sheathed cable |
227 IEC 42 (RVB) | Flat non-sheathed flexible cable |
227 IEC 52 (RVV) | Light PVC sheathed flexible cable |
227 IEC 53 (RVV) | Ordinary PVC sheathed flexible cable |
227 IEC 74 (RVVYP) | Oil-proof PVC sheathed, screened flexible cable |
227 IEC 75 (RVVY) | Oil-proof PVC sheathed, non screened flexible cable |
1).Wrapped in rolls/coils/rings with Plastic film for small diameter cables such as building wires.
2).Treated wooden/steel-wooden drums for big diameter cables.
3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
Packaging: In coils, wooden drums, steel drums or steel-wooden drums.
Shipping:
1.Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).
2. Large quantity will be shipped by sea.

1. We are factory, and raw material are produced by ourself.
2. OEM service available based on official & legal authorization.
3. Strict quality control system.
4. Faster lead time than our competitors.
5. Excellent quality with reasonable price.
6. Strong technical support (technical data, drawing, etc.)
7. Cable solutions to your particular requirements.
8. Free sample is available with economic express fee.
We always adhere to the priciple of "quality first, customer satisfication first". If you have any questions, please feel free to contact us through e-mail, phone, and trade message or other ways.

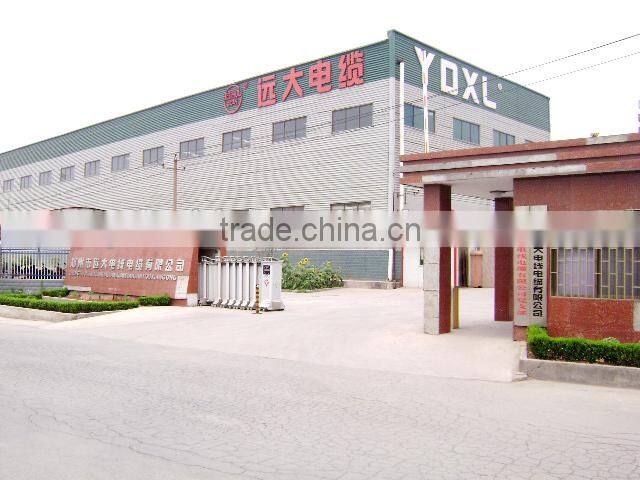

Zhengzhou Yuanda Cable Co., Ltd
Established: 1996
Factory Area: 60,000 square meters, Building area of 40000 square meters
Fixed Assets: USD 200 million
Number of Employees: more than 1,000 staffs
Annual production Capacity:100,000tons.
Certificate: ISO 9001, ISO 14001, OHSAS 18001,TUV,CE,CB,CCC etc.
Sub Factories: Rubber cable factory, conductor factory, cross-link cable factory ,cable factory, electric wire factory and special cable factory.
Zhengzhou Yuanda Cable has has a big wire & cable production base in Middle of China and we can deliver qualified cable products in very short lead time.
Yuanda Cable Products:
1. XLPE Power Cables Up to 220kV
2.Building Wires & PVC Cables (CE,IEC Certificate)
3.Rubber,Mining&Welding Cables (CE,IEC Certificate)
4.Solar Photovoltaic Cable
5.Fire Resistant/LSZH Cables
6.Aerial Bundled Cable (ABC)
7.ACSR,AAC,AAAC Bare Conductor
8.CAT5E,CAT6 Network Cable
9.Control&Instrumentation Cables
10.Silicone Rubber Cables
11.Fluorine Plastic Insulated Cables
12.Customized Cables & Wires
1.Q:Are you a factory or trading company?
A: Zhengzhou Yuanda Cable Co. Ltd (Headquarter) is a large mufacturing factory in Middle of China with 1,000 staff.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in No.1 building 23,Layer 2304,No.157 FuYuan Road, Jinshui District, Zhengzhou Henan. It is advised that you come directly by plane to Zhengzhou Airport.
3.Q:How can I get some samples?
A: Free Samples will be sent you by economic International Express if available, Freight Charge normally will be on buyer’s account.
4.Q:How does your factory do regarding quality control?
A: Zhengzhou Yuanda Cable company has passed ISO9001 and ISO14004 certificate and strict QC system. we promise to deliver only qualified cable.
5. Which payment terms do you accept?
A: The payment term varies with different price level and total value of every contract.
Common terms are as follows:
a.100% TT advance for small amount orders.
b. T/T 30% deposit, balance payment negotiable accordingly.
6. Have you ever supplied cables to our country?
A: Yuanda Cables have been supplied to many countries especially in Middle East,Middle Asia,South America,Southeast Asia countries and regions etc.
7. What is your MOQ?
A: MOQ varies as per the cable type.Normally 500 meters for big diameter cables. Please feel free to contact us directly for detail information if you have any specific cable requirement.
