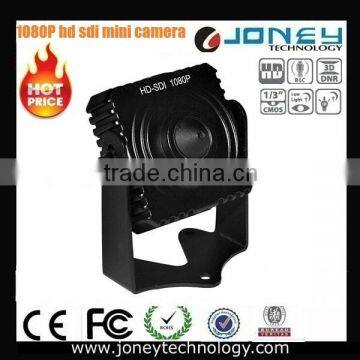

Pinhole Lens Mini Camera, 1080P Fixed Lens Mini HD-SDI security CAMERA
- 10000 Piece / Pieces per Month
- shenzhen
- Credit Card
You May Like
-
HD Pinhole Lens Mini Camera, 1080P Fixed Lens Mini HD-SDI CAMERA
-
2 Megapixel 1080P Full HD-SDI Color CCTV Security Camera HD SDI BOX Camera
-
Waterproof 2.8-12mm HD SDI Camera 2MP HD-SDI IR Bullet WDR dual voltage
-
2.8-12mm HD SDI Camera 2MP HD-SDI DOME Support WDR
-
HD SDI security camera Onvif 2.0,P2P Outdoor Full HD 1080P IP Camera
-
Powerful Mini 2MP 1080P WDR HD SDI Pinhole Motion Activated Security Light Camera
Product Details
| Place of Origin | Guangdong, China | Brand Name | JONEY | |
| Model Number | HDC-331A-1080P | Type | Other, Analog Camera, hd sdi security camera | |
| Style | Mini Camera | Sensor | Other, CMOS, 1/3 inch progressive scan 2.1 Mega Pixel Panasonic CMOS Sensor | |
| Technology | Pinhole | Special Features | Other, Mini HD-SDI CAMERA, WDR,3D-DNR,DEFOG |
Product Description
Specifications
Pinhole hd sdi security cameraa1080P HD-SDI Mini camera
3.7mm korean pinhole lens
True Day/Night Mechanical Lens Filter(ICR)
Pinhole Lens Mini Camera, 1080P Fixed Lens Mini HD-SDI security CAMERA
Features: Mini HD-SDI CAMERA hd sdi security camera
• 1/3 inch progressive scan 2.1 Mega Pixel Panasonic CMOS Sensor
• 3.7mm korean pinhole lens
• 1080p(1920*1080)@25/30fps
• Support WDR,3D-DNR,DEFOG
• OSD menu,Motion detection,Privacy Zone,HLC,BLC
• AWB/ATW/PUSH/MANUAL
• Min.Illumination:0.0003(Sens-up*1024x)
• True Day/Night Mechanical Lens Filter(ICR)
• TV Out(BNC) with NTSC/PAL Selectable
• Dual Output-Megapixel HD-SDI(BNC)&CVBS:1.0 Vp-p 750hm
• Power Supply:DC12V
• D:39(L)mm*39(W)mm*31(H)mm
• Weight:50g
• Color:Black
Specification: Mini HD-SDI CAMERA hd sdi security camera
Model No. | HDC-331A -1080P |
Image Sensor | 2.1 Mega Pixel, Panasonic CMOS(MN34041) Sensor |
Effective pixels | 1920(H) x 1080(V) |
Scanning system | Progressive Scan |
Minimum illumination | 0.001 Lux |
Lens | DC Auto Iris 10-120mm Megapixel Varifocal Lens with ICR |
IR view distance | N/A |
WDR (Long and Short exposure) | OFF/ON(Level Adjustable) |
O.S.D | Built-in |
3D-DNR (3D Digital Noise Reduction) | OFF/ON(LOW/MIDDLE/HIGH) |
Sens-Up | OFF/ON |
Motion Detection | OFF/ON |
Privacy Zone | OFF/ON |
HLC | OFF/ON |
B.L.C. control | OFF/ON |
Defog | OFF/ON |
White balance | AWB/ATW/PUSH/MANUAL |
A.G.C | HIGH / LOW |
Electronic shutter Speed | AUTO/MANUAL/FLK |
Video output | HD-SDI(SMPTE 292M compatible) / CVBS:1.0 Vp-p Composite Signal (75ohm) |
Operation temperature | -10℃ - +50℃ |
Operation Humidity | Within 95% RH |
Power supply | DC12V(+/-15%) |
Power Consumption | 170mA / IR LED ON:400mA Max |
Dimensions (mm) | 39(L)*39(W)*31(H)mm |
Weight-Net (g) | 50g |
HDC-331A-1080P HD-SDI
Real time review
Shenzhen Joney Security Technology Co.,Ltd provide various specification
and items of CCTV cameras,PTZ cameras, IP cameras, Standalone DVR,
DVR card, related cctv accessories, Fingerprint device, access control system, Alarm products.
