Home > Products > CCTV ACCESSORIES > Low Consumption 3.5'' Portable CCTV Tester DC12V Output Power JY-T896

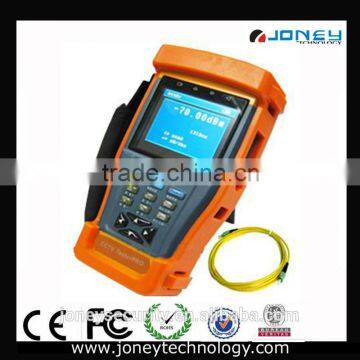

Low Consumption 3.5'' Portable CCTV Tester DC12V Output Power JY-T896
Negotiable
/ Piece
3 Pieces(Min. Order)
- shenzhen
- Credit Card
You May Like
-
Low Consumption 3.5"TFT-LCD CCTV Tester With Backup Battery JY-T896
-
3.5inch PTZ Controller,UTP Cable Tester CCTV Security Tester
-
3.5inch TFT-LCD CCTV Video Signal Tester for PTZ Data Analyst, PTZ Address Scanning
-
Plug and Play IEEE802.3 At/af 65W Unmanaged 8 Port POE Adaptor
-
Reliable 10/100Mbps 65W 50-60Hz 4CH POE Switch
-
3.5 Inch TFT LCD CCTV Tester Pro With PTZ Controller/PTZ Cable Tester and Optical Power Meter
Product Details
| Place of Origin | Guangdong, China | Brand Name | Joney | |
| Model Number | JY-T896 | Power | Electronic |
Product Description
Specifications
--3.5 inch TFT LCD--ptz controller
--support 12 hours working time
--UTP cable tester
--video level testing
Low Consumption 3.5'' portable CCTV tester DC12V output power JY-T896
Product Description
CCTV Tester Features : Protable CCTV Tester
3.5"TFT-LCD, LCD Brightness/Contrast/Color S22aturation are adjustable, NTSC/PAL auto display, Video Level testing, NTSC/PAL colorbar generator, PTZ controller,UTP cable tester, PTZ data analyst, PTZ address scanning, DC12V 1A power output for camera, Audio testing, Optical power meter, Lithium Ion Polymer Battery support 12 hours working time.
CCTV Tester Specification: Protable CCTV Tester
| Specifications | |
| Screen size | 3.5"TFT-LCD 960(H) X 240(V) resolution |
| Signal mode | NTSC/PAL (Auto Adjust) |
| LCD adjust | Adjustable brightness, contrast, color of LCD |
| Video IN/OUT | 1 channel BNC Input & 1 channel Output |
| Video Output Mode | 1.0 Vp-p |
| Level test | Video signals measured in IRE or mV |
| Audio Input | 1 channel Audio input |
| Communication | RS232, RS422 simplex and RS485 |
| PTZ Protocol | Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.customized |
| PTZ Data Test | Capture and Analyze the PTZ data sent from controlling device |
| PTZ address scan | Search up the ID of PTZ camera |
| Baud Rate | 150,300,600,1200,2400,4800,9600,19200bps |
| Color bar generation | Output 1 channel color bar video signal for testing monitor |
| UTP cable test | Test UTP cable connection state and display in the screen. Read the number of the test box. |
| Optical Power Meter | testing the laser power of Video Fiber Optic Transmission equipment, and testing the Fiber Optic Patch Cord , etc. |
| Power Adapter | DC5V, 2A |
| Backup Battery | 1 pcs Lithium Ion Polymer Batteries, 3.7V DC3000mAh |
| Rechargeable | 4.5 hours recharging time, work for 12 hours |
| Low Consumption | Sleeping mode, display battery power state |
| Work Temperature | Temp:–10°C to 50°C |
| Work Humidity | 30%-90% |
| Color Box Dimension | 112mmx189mmx47mm |
| Standard Kit Weight | 1.35kg |
| Application & Functions | |
| Application scope | CCTV system installation and maintenance |
| The CCTV transmitting channel testing | |
| PTZ controller | |
| Dome camera and All in one camera testing | |
| Basic Functions | DC12V power output to Camera |
| 1CH audio input | |
| Optical power meter, testing the laser power of Video Fiber Optic Transmission equipment, and testing the Fiber Optic Patch Cord , etc.t. | |
| PTZ address scanning, search up the ID of PTZ camera | |
| Capture the PTZ protocol to assist the setting personnel to find out the control protocol and therefore easily target the problematic equipment | |
| Support RS232 and RS485 interface, the rate 150-19200bps | |
| Powerful in testing LAN cable, measuring the connecting status and displaying the sequence of connection | |
| PTZ(P/L & Zoom) Control: Control the status of P/L, zoom in/out the camera, adjust the aperture, foci and setting parameters, run and call the preset. | |
| Support more than twenty kinds of PTZ controller protocols | |
| Colorbar Video signal generator, transmit/receive colorful images | |
| Automatically identify and adapt the video mode of NTSC and PAL | |
| Adjustable brightness, contrast, color of LCD | |
| Standard Package List | |
| CCTV Tester(Built-in battery) | x1 |
| Bag | x1 |
| Sling | x1 |
| DC5V adapter | x1 |
| USB adapter cable | x1 |
| 485 cable | x1 |
| Audio cable | x1 |
| Video cable | x1 |
| DC12V output cable | x1 |
| CAT5 tester | x1 |
| Fiber Optic Test Connectors | x1 |
| User Manual | x1 |
| Color box | x1 |
| Services | |
| PST offer 2 years product warranty since the date of shipping, unlimited after-sales service | |
| Delivery time: within 7 days | |
| Payment: Bank wire transfer, Western Union, T/T ,Paypal | |
| Shipping: Express(DHL, UPS, FedEx, TNT etc), Air Cargo, by sea, HK post, China Post, EMS | |
| 24 hours timely tech support via email, skype, MSN, whatsapp, phone etc | |
