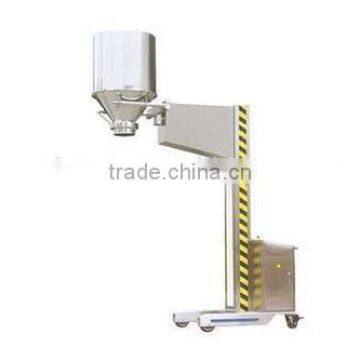

stainless steel mobile powder lifting machine
- qingdao
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Honza | |
| Model Number | HTY | Application | Powder | |
| Type | Other, upgrade | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Use
Mobile lifting machine is mainly used for the powder, granular and other solid materials conveying and feeding, which can be used to process equipment, such as mixing mechanism, tablet press, coating machine and packaging machine. It is an ideal material conveying equipment for pharmaceutical factory, and it is also widely used in chemical industry, light industry food and other industries.
Principle
Mobile lift feeder is mainly composed of two parts of the chassis and the lifting machine. The lifting machine is made up of the frame, hydraulic lifting system and hopper turning mechanism, and the sealing device is arranged in the special conical hopper, the material bucket and the easy cleaning material.
Characteristic
The body of the shell is made of austenitic stainless steel, no dead angle, no concave and convex, smooth and easy to clean. Polyurethane casters, easy to promote, and do not operate the epoxy floor, leaving no trace. Discharging valve, which can be disassembled and cleaned. The material barrel is equipped with a sealing device, the lock is reliable, and the working time is no dust, no leakage, the effective control of dust and cross contamination.
Model | Main structure size | Machine weight | Net cargo | Total power | ||||||||
A | L | L1 | L2 | H1 | H2 | H3 | DN | φ | T | Kg | Kw | |
HTY-50 | 600 | 1780 | 950 | 450 | 1800 | 1950 | 2650 | 150 | 500 | 0.3 | 50 | 1.47 |
HTY-100 | 600 | 1880 | 1050 | 550 | 1800 | 1950 | 3150 | 150 | 600 | 0.4 | 100 | 1.87 |
