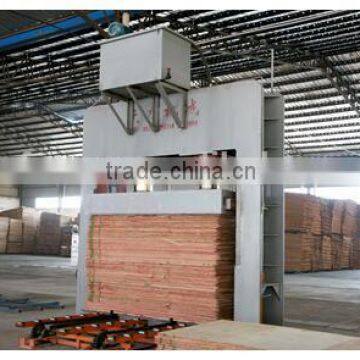

400T hydraulic oil cylinder overhead preforming press

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, plant
Place of Origin	Shandong, China	Brand Name	Tianli
Voltage	Customized	Power(W)	22KW
Dimension(LWH)	355013704200 Mm	Weight	5000KG
Certification	ISO	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

3·400T oil cylinder overhead preforming press

Model	BY814×8/4-II
Nominal Gross Pressure	4000 KN
Direction of Feeding Plate	Horizontal
Opening	1600mm
Dimension of Workingbench	2700×1380mm
Diameter of Cylinder	320mm (WUXI)
Numbers of Cylinder	2pcs
Stroke of Cylinder	1000mm
Promote the diameter of the jar	63mm
Numbers of the jar	2pcs
Stroke of Cylinder	1000mm
The flow of the post pump	About 14L/min
Allowed Pressure	≤26 Mpa
Power of the post pump	7.5 KW
Send the power of the motor	2.2 KW
Send the speed	6 m/min
Net Weight	16,500 Kg
Overall Dimensions	1400×3400×4850 mm
Control Method	Automatic Pump Station
Thickness of Upper And Lower Crossbeams	1000,900 mm
Thickness of Steel Plate	40mm
Thickness of Acctive Crossbeam	300mm
