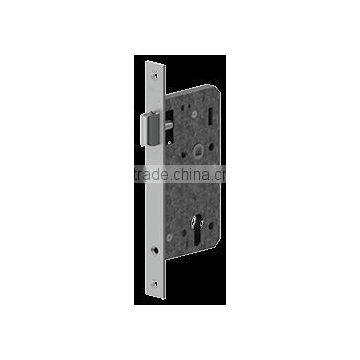

Fire Rated Night Latch Mortise Lock
Negotiable
1 (Min. Order)
- T/T
You May Like
-
High Quality Fire Rated Anti Panic Mortise Lock
-
High Quality Sash Mortise Lock
-
ICSA Mortise Lock at Special Price With Five Year Warranty - Made in Italy
-
ICSA Double Cylinder at Special Price With Five Year Warranty - Made in Italy
-
ICSA Knob Cylinder at Special Price With Five Year Warranty - Made in Italy
-
No Smoking Stainless Steel Sign Board
Product Details
| Place of Origin | China | Brand Name | Hager | |
| Model Number | 3800U - 55M |
Product Description
Specifications
Certifications: EN 12209: 2003EN 1634-1: 2000 (4-Hour Fire Rated)
CE Classification 3X510F-B020
Backset: 55 mm (2-3/16 in)
Center to Center: 72 mm (2-23/32 in)
Forend Length: 235 mm (9-1/4 in)
Forend Width: 24 mm (31/32 in)
Latchbolt Throw: 12.5 mm (1/2 in)
Strike Length: 102 mm (4-1/32 in)
Strike Width: 24 mm (31/32 in)
Strike Width w/ Lip: 39 mm (1-17/32 in)
Finish: US32D
Fasteners: Two (2) each #8 x 25 mm (1 in) FPHWS and #6 x 19 mm (3/4 in) FPHWS
Includes: Mortise lock body and strike
Warranty: Three-year
Notes: • Cylinders and levers sold separately
• Field reversible, non-handed
• 3 mm (1/8 in) forend round corners available upon request
• To be used with half spindle (2-669-0732), sold separately
