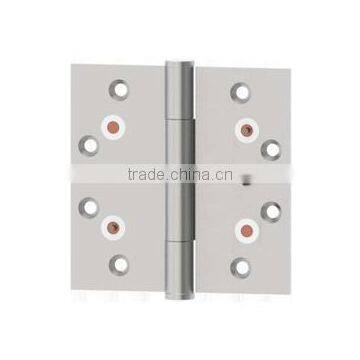

Exposed Electric Switch Hinge
Negotiable
1 (Min. Order)
- T/T
You May Like
Product Details
| Place of Origin | United States | Brand Name | Hager | |
| Model Number | E2/E1S |
Product Description
Specifications
Available on: Architectural grade ball bearing and anti -friction bearing hingesOptions: - Three knuckle or five knuckle
Sizes: - 4 x 4 (102 mm x 102 mm)
- 4-1/2" x 4-1/2" (114 mm x 114 mm)
- 5" x 5" (127 mm x 127 mm)
Notes: - Combination of two contacts and one switch
- Single pole, double throw switch
- Design includes insulated copper contacts
- Furnished with non -removable pins
To order: - Specify suffix "E2/E1S
Hinge Size (inches) Hinge Size (mm) Contacts
4 x 4 102 x 102 2 or 3
4 1/2 x 4 1/2 114 x 114 2, 3, or 4
5 x 5 127 x 127 2, 3, or 4
Wire Max. Electrical Rating
Amperes - Continuous - 3.5 Amps
Amperes - Pulse - 16.0 Amps
Volts - 48 VDC
Switch Max. Electrical Rating
24 VDC @ .250 Amps
