CE/RoHS Industrial Vortex Low Noise Mini / Small Centrifugal Fan
- FOB Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Electric Current Type | AC | Blade Material | Plastic | |
| Mounting | Duct Fan | Place of Origin | Guangdong, China | |
| Brand Name | hzzygk or oem | Model Number | HCGF | |
| Power | 60-380W | Voltage | 110-230V | |
| Air Volume | 200-1900m³/h | Speed | 2450~2800rpm | |
| Certification | CE, ROHS | After-sales Service Provided | No overseas service provided |
Product Description

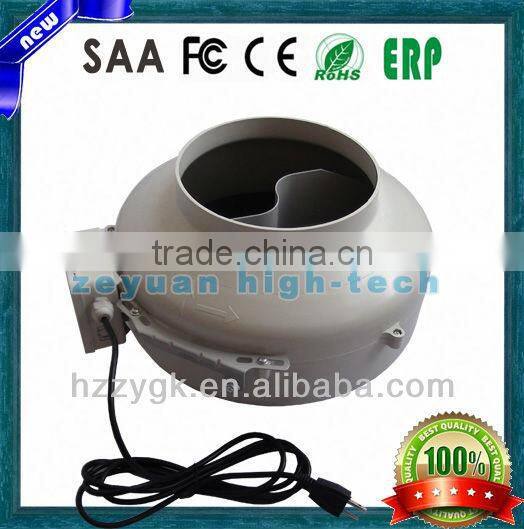

CE/RoHS Industrial Vortex mini / Small Centrifugal fan
1 Phase, (Plastic Cased) Powerful and Quiet c/w Mounting Brackets
These fans are manufactured with a high impact polyester casing complete with detachable mounting brackets and incorporate the reliable, long life, external rotor motor c/w a high efficiency backward curved impellor
This range of fans are excellent for long ducting runs, low noise and easy to install ideally suited for a wide range of general residestial, commercial and industrial exhaust or supply ventilation applications.
DETAILS
Colour available: Black, White, Grey, Green, Yellow, etc
Accessories: It is possible to connect a variable speed controller, Providing the customer with variable airflow setting.
TECHNICAL PARAMETER
Model | Voltage | Frequency | Power | Rotate | Air Flow | Pressure |
(HCGF) | (V ) | (HZ) | (W) | (R/Min) | (M3/H) | (Pa) |
Φ100mm | 120 / 230 | 60 / 50 | 68 | 2590 | 310 | 350 |
Φ125mm | 120 / 230 | 60 / 50 | 70 | 2540 | 400 | 365 |
Φ150mm | 120 / 230 | 60 / 50 | 99 | 2375 | 620 | 380 |
Φ160mm | 120 / 230 | 60 / 50 | 130 | 2580 | 670 | 400 |
Φ200mm | 120 / 230 | 60 / 50 | 180 | 2145 | 1050 | 580 |
Φ250mm | 120 / 230 | 60 / 50 | 190 | 2280 | 1150 | 610 |
Φ305mm | 120 / 230 | 60 / 50 | 215 | 2410 | 1850 | 680 |
Φ315mm | 120 / 230 | 60 / 50 | 230 | 2375 | 1900 | 710 |
