Hoozoe LED Full Color Module P10
Negotiable
/ Piece
10 Pieces(Min. Order)
- XIAMEN
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | Hoozoe | |
| Model Number | Hoozoe-Outdoor-DIP-P10-RGB | Usage | Outdoor | |
| Tube Chip Color | Full Color | Display Function | Other, Video,Message,Picture,Text | |
| Pixels | 10mm | Screen Dimension | 960*960mm |
Product Description
Specifications
1.High Stability, Power Saving2.CE,ROHS, ETL,CE,RoHS,TUV,FCC-A,CCC Certified
3. High Cost Performance
Product Description
| P10 Full Color Outdoor Module | ||
| Item | Unit | Parameter |
| Pixel Pitch | mm | 10.00 |
| Pixel Density | dots/sqm | 10,000 |
| Resolution of Module | dots | 32×16 |
| Module Size | mm | 320×160 |
| HUB | 75A | |
| Led Package | DIP Oval 346 lamp | |
| Pixel Configuration | 1R1G1B | |
| Chip Brand of LEDs | Epistar | |
| Module Weight | kgs/pc | 0.46 |
| Brightness (White Balance) | nits(cd/sq.m) | 7,500 |
| Red Wavelength | nm | 620-625 |
| Green Wavelength | nm | 520-525 |
| Blue Wavelength | nm | 470-475 |
| Scan Mode | 1/4 Scan | |
| View Distance | M | 5~100 |
| Best View Distance | M | 12.5~33 |
| Viewing Angle-Horizontal | deg. | 110 |
| Viewing Angle-Vertical | deg. | 60 |
| Module Maximum Power | W | 33.4 |
| Max. Power Consumption | W/sq.m | 1,302 |
| Avg. Power Consumption | W/sq.m | 390 |
| Working Voltage | 40A 5V | |
| Power Supply | AC 110/220V | |
| Waterproof Grade | IP65 | |
| Refresh Rate | Hz/S | 3,000 |
| Frame Rate | Hz/S | ≥ 60 |
| Gray Scale | 4096 grades gray | |
| Display Color | 256*256*256 | |
| Display Function | Text,news,advertising,flash,animation | |
| Input Signal | RF,S-Video,RGB,RGBHV,YUV,YC,SDI,HD-SDI,DVI,UXGA,COMPOSITION,etc. | |
| Luminance Degradation | Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature 25℃. | |
| Defective Dot Rate | <0.0001 | |
| Life Span | hours | 100,000 |
| MTBF | hours | >10,000 |
| Storage Temperature | ℃ | -35 -- +80 |
| Working Temperature | ℃ | -20 -- +80 |
| Working Humidity | 10%-90%RH | |
| Control System | Synchronization or Asynchronization | |
| Quality Certificate | ETL,CE,RoHS,TUV,FCC class A,ISO9001:2008 | |
| Warrenty | 2 Years | |
| Working Environment | Outdoor | |
| Other Fertures | LED&ICs in Departed PCB | |
| Note: The above parameter is just for reference. Changes can be made according to customers' requirements. | ||

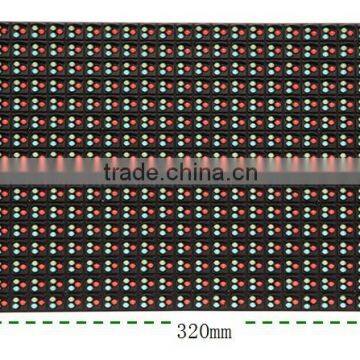

Products Pictures
Products Advantage:
1. Good Frame---resist high tempreture and low tempreture
2. Lamp Chip: ALL EPISTAR lamp and 9MIL chip
3. The organized design ---muchtidy PCB , balanced modules light
4. One more capacitors ---- more steady voltage
5. The water-proof groove----great drainage and waterproof
6. Pin header with protection--firmly connection between data cables and modules
Packaging & Shipping
Our Services
(1). Product Quality : For LED Modules , 24 hours Aging test before shippment;
For LED Display, 72 hours Aging test before shippment
which will avoid some problems and make customers satisfied with the quality of our led products.
(2). After Sale Service : 1 year warranty ;
Complete instruction for led screen installation
Professional technical team for remote control maintenance .
