Air-Line Cabinet Series -ph 10 rgb

FOB Price

USD $1,000 - $1,400 / Square Meter

10 Square Meters(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	Hoozoe
Model Number	Hoozoe-Outdoor-DIP-P10-RGB	Usage	Outdoor
Tube Chip Color	Full Color	Display Function	Other, Video,Message,Picture,Text
Pixels	10mm	Screen Dimension	960*960mm

1.High Stability, Power Saving
2. Convenient assemble and save space
3. High Cost Performance
4. Ultrathin
5. CE, 3C etc.

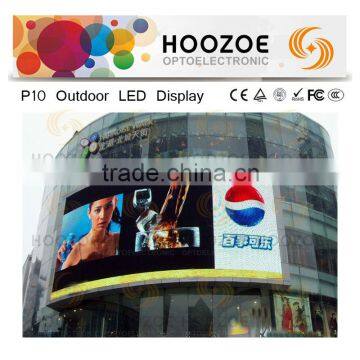

P10 Full Color Outdoor Module
Item	Unit	Parameter
Pixel Pitch	mm	10.00
Pixel Density	dots/sqm	10,000
Resolution of Module	dots	16×16
Module Size	mm	160×160
HUB		75A
Led Package	DIP Oval 346 lamp
Pixel Configuration	1R1G1B
Chip Brand of LEDs	Epistar
Module Weight	kgs/pc	0.46
Brightness (White Balance)	nits(cd/sq.m)	7,500
Red Wavelength	nm	620-625
Green Wavelength	nm	520-525
Blue Wavelength	nm	470-475
Scan Mode	1/4 Scan
View Distance	M	5~100
Best View Distance	M	12.5~33
Viewing Angle-Horizontal	deg.	110
Viewing Angle-Vertical	deg.	60
Module Maximum Power	W	33.4
Max. Power Consumption	W/sq.m	1,302
Avg. Power Consumption	W/sq.m	390
Working Voltage	40A 5V
Power Supply	AC 110/220V
Waterproof Grade	IP65
Refresh Rate	Hz/S	3,000
Frame Rate	Hz/S	≥ 60
Gray Scale	4096 grades gray
Display Color	256256256
Display Function	Text,news,advertising,flash,animation
Input Signal	RF,S-Video,RGB,RGBHV,YUV,YC,SDI,HD-SDI,DVI,UXGA,COMPOSITION,etc.
Luminance Degradation	Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature 25℃.
Defective Dot Rate		<0.0001
Life Span	hours	100,000
MTBF	hours	>10,000
Storage Temperature	℃	-35 -- +80
Working Temperature	℃	-20 -- +80
Working Humidity	10%-90%RH
Control System	Synchronization or Asynchronization
Quality Certificate	ETL,CE,RoHS,TUV,FCC class A,ISO9001:2008
Warrenty	2 Years
Working Environment	Outdoor
Other Fertures	LED&ICs in Departed PCB
Note: The above parameter is just for reference. Changes can be made according to customers' requirements.

Our Case

Reference Pictures

Connection Picture

Packaging & Shipping

A: Wooden Case

B: Air-line Box

Our Services

(1). Product Quality : For LED Modules , 24 hours Aging test before shippment;

For LED Display, 72 hours Aging test before shippment

which will avoid some problems and make customers satisfied with

the quality of our led products.

(2). After Sale Service : 1 year warranty ;

Complete instruction for led screen installation

Professional technical team for remote control maintenance .
