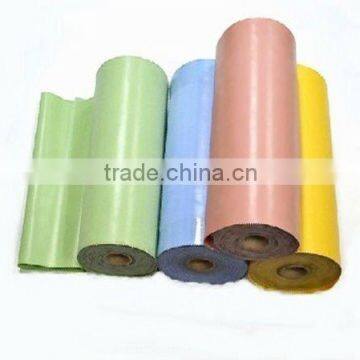

Updated Excellent Thermal Conductivity Silicone Electric Thermal Pad
Negotiable
/ Meter
25 Meters(Min. Order)
- Shenzhen Port China
- T/T Credit Card
You May Like
-
Silicone Sheet,Two-Side Tacky,High Thermal Conductivity,for LED/CPU/Machinery Filling, Shock Reduction and Heat Sink Purpose
-
Perfect Silicone Laptop Thermal Pad for Filling, Shock Reduction and Heat Sink Purposes
-
Silicone Thermal Conductive Pad with Factory Directly Sales
-
TO-220/TO-3P Thermal Pads, Fiberglass Reinforced with Silicone
-
Silicone Thermal Insulation Pad with Factory Directly Sales
-
Silicon Thermal Pad with Factory Directly Sales
Product Details
| Place of Origin | Guangdong, China | Brand Name | Can Be Printed | |
| Model Number | FY2011-106 | Type | Insulator | |
| Material | Other, Silicone + Fiberglass Fabric | Application | High Temperature | |
| Rated Voltage | >4 KV | Tensile Strength | 6.6 MPA |
Product Description
Specifications
Electric Thermal Pad;Thermal Conductivity:1.5W/m.K;
Die-Cut Shapes;
Applied in CD-ROM, DVD, and LCD/TV Backlight Unit;
Electric Thermal Pad
Materials: | Silicone Reinforced with Fiberglass |
Temp Range: | -40°C to 230°C |
Color: | Grey, Red, Black, etc. |
Specific Gravity: | 2.08 g/cm3 |
Hardness: | 53(14) Shore OO (Asker C) |
Dielectric Strength: | 475volts/mil, 19kv/mm |
Thermal Conductivity: | 0.8- 1.5W/m.K |
Thickness: | 0.3, 0.45 and 0.8mm |
Flammability: | 94 HB |
Tear Strength: | 440 lb/in |
Volume Resistivity: | 3.24 E+14 |
Dielectric Constant: | 100Hz |
Purpose: | Filling, Shock Reduction and Heat Sink(CD-ROM, DVD, and LCD/TV Backlight Unit) |
Shape: | Roll Form(300mm x 50M and 300mm x 25M per Roll) |
Package: | One PP Bag for 300mm x 50M or 300mm x 25M per Roll. |
MOQ: | 300mm x 25M in Roll. |
Trade Term: | FOB Shenzhen,China;or CIF + Discharge seaport / Destination |
Payments Term: | 30% T/T for Advance, and Rest 70% T/T Payment before Shipment. |
Lead Time: | One Day after Your Deposits. |
Sample Charges: | Free for Samples. |
Certificates: | UL,RoHS,REACH |
