Home > Products > solar battery > 10kwh Lithium Ion Battery 48V 200Ah For Solar Battery Bank

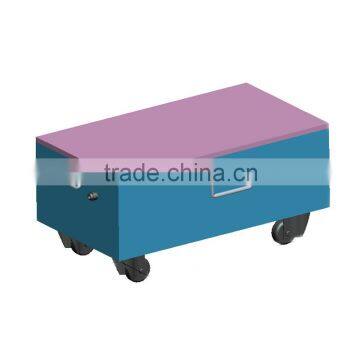

10kwh Lithium Ion Battery 48V 200Ah For Solar Battery Bank

FOB Price

US$ 5,200 - 5,200 / Pack

1 Pack(Min. Order)

Port shenzhen /hongkong

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	OPTIMUM
Model Number	opt-48200	Usage	Other, solar power storage
Voltage	Other, 48v	Sealed Type	Sealed
Maintenance Type	Other, Series parallel connection	Size	customized
Weight	125kg	Nominal Capacity	200AH

Product Description

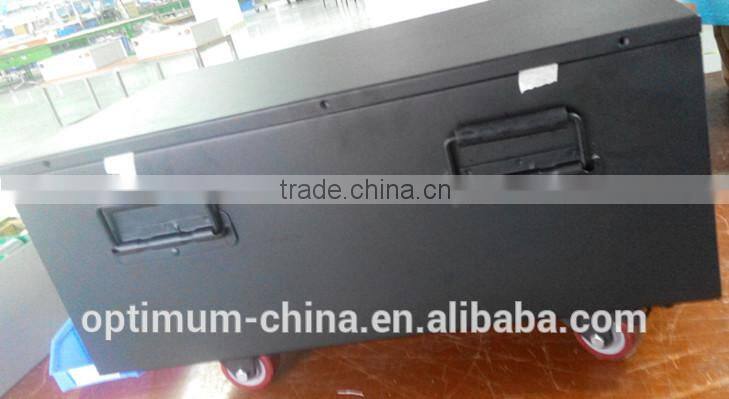

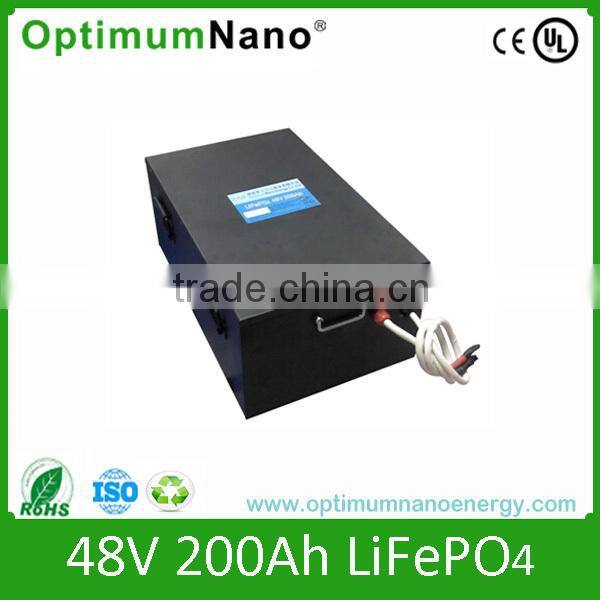

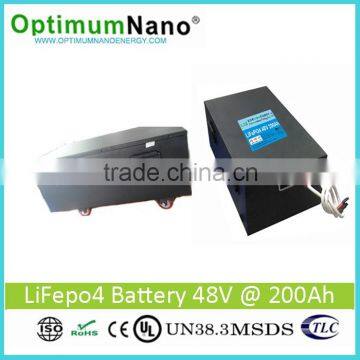

10kwh Lithium ion Battery 48V 200Ah For Solar Battery Bank

Specification

NO.	Item		General Parameter				Remark
1	Model		IFR 32650
2	Case material		steel case for single cells
3	Standard capacity(0.2C)		200Ah
4	Minimum capacity (1C)		200Ah
5	Rated voltage		48V
6	Max.Charge voltage		58.4V
7	Cut-off voltage		40V
8	Standard charge current		100 A				0.5C
9	Max charge current		100 A				0.5C
10	Max discharge current		200A				1C(2mintues)
11	Pulse discharge current		400A				2C(10seconds)

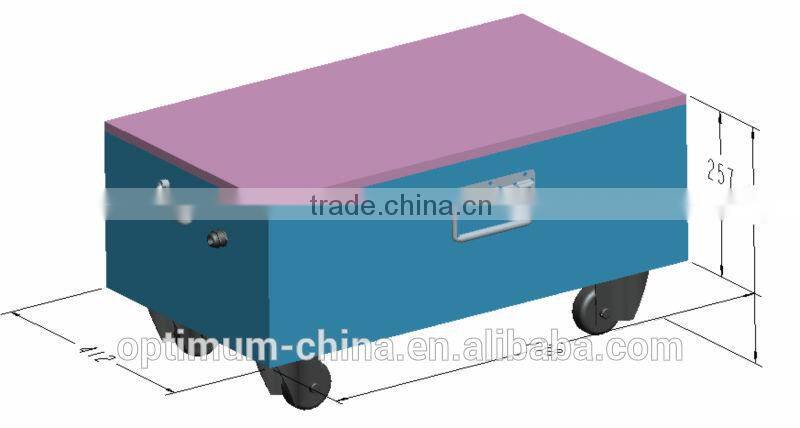

12	Battery dimension		580440450 mm				Could be customerized
13	Weight(Approx,including case)		About125 kg
14	Impedance(Max, at 1000Hz.)		≤ 30mΩ
15	Charge method (CC/CV)	Standard	CC	0.2C		3.65V cut off
			CV	3.65V		0.05C cut off
		Rapid	CC	1C		3.8V cut off
			CV	3.65V		0.05C cut off
16	Operate temperature		Charge		0°C~45°C
			discharge		-20°C~60°C
			storage		-20°C~55°C

Safe: The safest LiFePO4 battery so far, with CE, UL approved.

Environmental-friendly: All of our LiFePO4 approved ROHS.

Quality: Have obtained ISO9001-2008 and TS/16949 certification .Every cells in the same capacity , impedance ,self-discharging ,voltage ,discharge stage ,cc ratio .

Other features:

1. Safety: safest Li-Ion battery, CE UL approved, built-in BMS, none fire, none explosive

2. Clean and Green energy, no toxic material contained

3. Powerful: HP battery can discharge in 15C~20C

4. Long life cycle, > 2000 times deep cycle,8 times of lead acid battery

5. No memory effect,highly efficient charge anytime, no reduction of capacity

6. Operation temperature: -20~70°C

7. Small size and light weight: 1/2 size of lead acid battery, 70% size of Ni-MH Ni-Cd battery,

1/2 weight of lead acid battery

8. Good performance at high temperature and high temperature resistance

9. Low self-discharge rate: < 3% monthly

Certification

Procedure

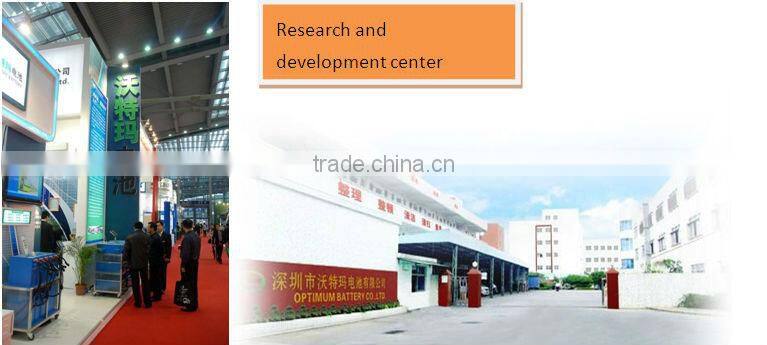

Our Factory

Why choose OPTIMUM LIFEPO4 Battery ?

1.Good quality, Safe and Reliable , Best Service.

2.Enjoyed in this field for more than 13years .

3.TS16949 management system.

4.Maintain a long-term business relationship with France, the USA, UK,

Australia, Germany, India and Brazil with competitive price.

Warmly welcome you to visit our factory !
