DPP100-3G1 Mobile Drilling Rig

DPP100-3G1 Mobile Drill  rig Introduction:

DPP100-3G1 mobile drill is one kind of rotary drilling equipmeny installed on the chassis of Dongfeng diesel truck, the truck meets the china IV emission standard, the drill equipped with transpose positions and auxiliary hoisting device, drilling fed ny hydraulic oil pressure.

1. Application Range

(1) Exploration in shawllow holes of mine, and seismic exploration drilling.

(2) Drilling holes in liquids and natural gas exploitation.

(3) Drilling holes for construction blasting.

(4) Geological exploration and shallow water well drilling.

2. Main Features

(1) Having hydraulic pressure and high ability of pulling down and pulling up. The operation is easy and secure.

(2) The main hoist provided is planetary hoisting; the operations are easy, safe and reliable. The auxiliary hoisting device provides impacting operating.

Technological Data of  YDC-2A1 mobile drilling rig :

1. Fundamental parameters

  Maximum drilling depth                                       With 7-3/4" (200 mm) bit                             70 m

                                                                              With 5-3/4" (150 mm) bit                             100 m

Hex Kelly bar (across flats x length )                     75 X 5500 mm

Diameter of drilling rod                                          50 mm

Overall dimension (L x W x H )                             9560 x 2450 x 3480 mm

Outfit weight                                                          8210 Kg

2.Rotary table

Spindle speed                                                       55,102,176 rpm

Maximum feeding capacity                                   30 KN

Maximum pulling capacity                                     50 KN

Transpose stroke                                                  450 mm

3. Main hosting device

Rotation speed of drum                                                           23.6, 44, 75.3 rpm

Hosting speed (single wire)                                                            0264, 0.49, 0.84 m/s

Single wire lifting capacity                                                       12.5 KN

Diameter of the wire rope                                                         13 mm

4. Mud pump

Type                                                                             BWT - 450

Maximum operating pressure                                        2 MPa

Maximum displacement of water                                    450 L/min

5.  Hydraulic oil pump

Type                                                                        CBE 32

Operating pressure                                                                  8 MPa

Hydraulic oil flow                                                                      35 L/min

6. Hydraulic mast

Diameter of cylinder                                                                              100 mm

Maximum operating pressure                                                                8 MPa

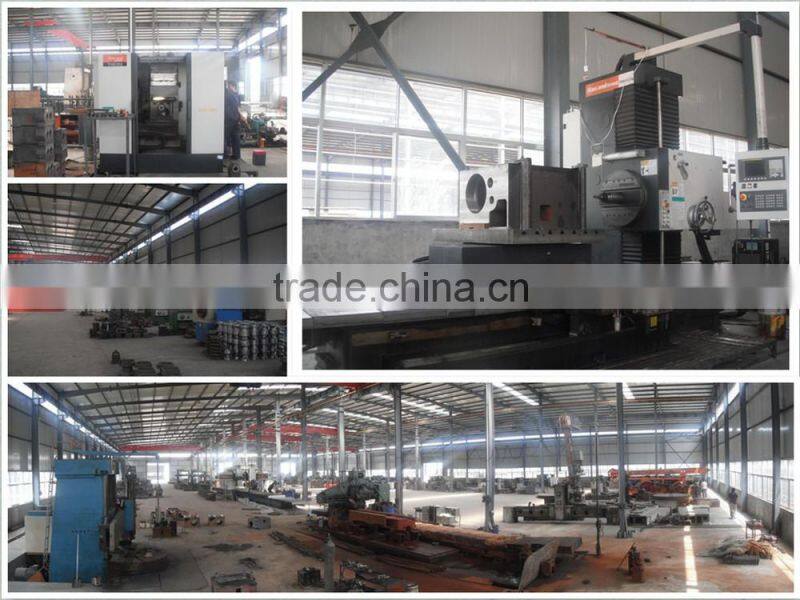

Drill rigs Factory:

     DPP100-3G1 Mobile Drill  rig Customer:

Quality Drill rigs Manufacturer In China  -FAQ

Payment terms:100% by TT ,

Delivery time:10 days after deposit

Supply ability:1000 pcs per month.

If you want to get more information,please contact me.
