Core Drilling Machine for Mineral Exploration

 XY-1 core rotary drilling rig  Introduction:

XY-1 Core Drilling Rig is suited for the applications of general exploration and investigation, geophysical prospecting, road and construction survey, blast holes and other drilling operations.

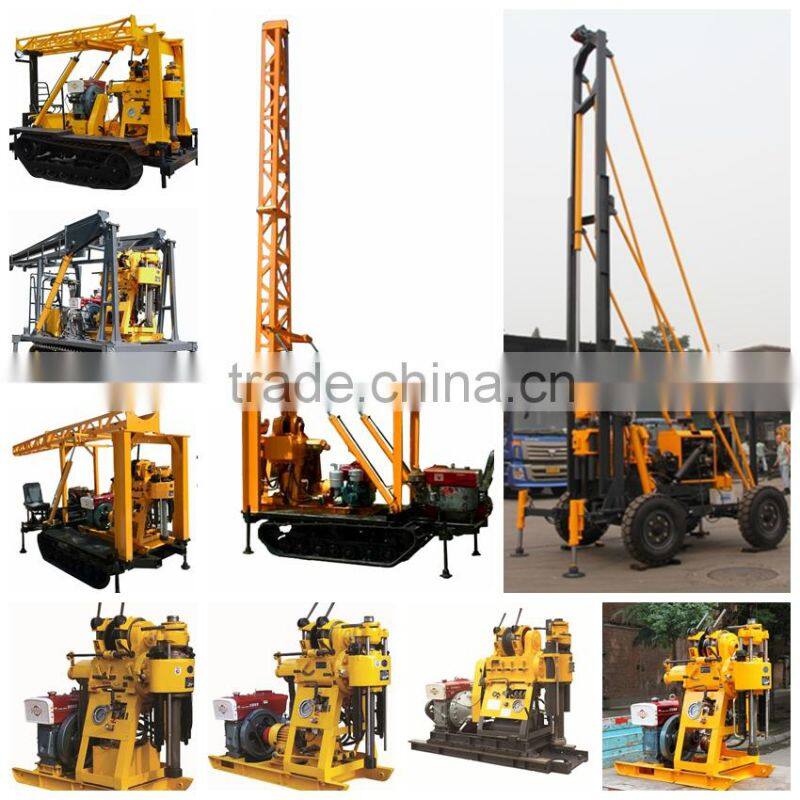

XY-1 type:    track-mounted rig,    trailer mounted rig

Drill Rigs Features:

rotary drilling rig
1.easy operation
2.lightweight to move
3.reasonable price
4.good service

Application:

1. With hydraulic automatic feeding device, elevated drilling efficiency.

2. The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.

3. Centralized handles, easy operation, safe and reliable.

4. The drilling machine, pump and diesel engine are installed on a common base frame in order to have a compact structure and occupy small field area.

5 lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas..

Technological Data of  XY-1 core rotary drilling rig :

Drilling depth                                                                             100m

Drill rod dia.                                                                              42mm

Initial hole dia.                                                                          110mm

Final hole dia.                                                                           75mm

Angle range                                                                              90°-75°

Dimensions(L×W×H)                                                      1640×1030×1440 (mm)

Weight(without power unit)                                                        500kg

Swivel Head

Spindle speed(3-speed)                                                   142/285/570 r/min

Spindle stroke                                                                           450mm

upward displacement speed of idling vertical spindle                0.05m/s

Downward displacement speed of idling vertical spindle           0.067m/s

Spindle pull-down max                                                               15KN

Spindle lifting capacity max                                                        25KN

Hoist

Max .lifting capacity(1-speed,single rope)                                 10KN

Cable volume (number) of hoisting drum                                   27m

Wire rope dia.                                                                           9.3mm

Mud Pump

Model                                                          Horizontal reciprocating single-acting piston pump

Displacement max

Equipped with diesel engine                                                      95L/min

Equipped with motor                                                                  77L/mm

Allowable working pressure max                                                1.2Mpa

Continuous working pressure                                                    0.7Mpa

Suction pipe dia                                                                         32mm

Discharge pipe dia                                                                     25mm

Drill rigs Factory:

XY-1 core rotary drill rig  ware house:
