24v 240v Home Ups Inverter 3000va With External Battery
US$ 197 - 224
/ Piece
10 Pieces(Min. Order)
- FOB Shenzhen
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Must Solar | |
| Model Number | TX-T 3000VA | Phase | Single Phase | |
| Protection | Overvoltage | Weight | 23.7KG | |
| Output Voltage | 240v | Type | Line Interactive | |
| Application | Networking |
Product Description
Specifications
1) voltahe Dc24v to Ac 240v2) rated power 3000va
3) ups inverter type
4)built-in charger
5) Sine wave
24v 240v home ups inverter 3000va with external battery :
Main Feature:
·Built-in super smart charger, shorten 50% of charging time
·Excellent microprocessor control guarantees high reliability
·Boost and buck AVR for voltage stabilization
·Auto restart while AC is recovering
·Sine Wave
·Off-mode charging
·Cold start function
·Optional USB/RS-232 communication port and RJ-11/RJ-45 protection
·Offering LED and LCD panels for selections

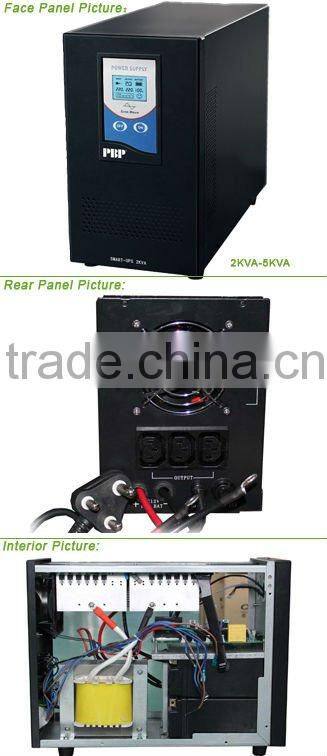

Pictures:
3.Data Sheet :
| 1.Output | |||||
| Output Power Capacity | 1000VA/700W | 1500VA/1050W | 2000VA/1400W | 3000VA/2100W | 5000VA/3500W |
| Max Configurable Power | 1000VA/700W | 1500VA/1050W | 2000VA/1400W | 3000VA/2100W | 5000VA/3500W |
| Nominal Output Voltage | 110/110/120/127/220/230(+25%,-25%) | ||||
| Output Voltage Note | Configurable for 220 : 230 or 240 nominal output voltage | ||||
| Output Voltage Distortion | Less than 5% at full load | ||||
| Output Frequency (sync to mains) | 47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal | ||||
| Waveform Type | Sine wave | ||||
| Output Connections | (8) IEC 320 C13 (1) IEC 320 C19 (2) IEC Jumpers | ||||
| 2.Input | |||||
| Nominal Input Voltage | 110/110/120/127/220/230(+25%,-25%) | ||||
| Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) | ||||
| Input Connections | IEC-320 C14 | ||||
| Cord Length | 1.83 meters | ||||
| Input voltage range for main operations | 160 - 286V | ||||
| Input voltage adjustable range for mains operation | 151 - 302V | ||||
| 3.Batteries & Runtime | |||||
| Battery Type | VRLA/Gel/Deep Cycle Battery | ||||
| Typical recharge time | Standard 8 hours | ||||
| DC Voltage | 12VDC | 24VDC | 24VDC | 24VDC | 48VDC |
| RBC™ Quantity | 1/2 | ||||
| 4.Communications & Management | |||||
| Interface Port(s) | SmartSlot,USB | ||||
| Available SmartSlot™ Interface Quantity | 1 | ||||
| Control panel | Multi-function LCD status and control console | ||||
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm | ||||
| Emergency Power Off (EPO) | Optional | ||||
| 5.Surge Protection and Filtering | |||||
| Surge energy rating | 459 Joules | 459 Joules | 365 Joules | 365 Joules | 480 Joules |
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 | ||||
| 6.Physical | |||||
| Dimensions: (H×D×W) | 465*215*285 | 465*215*285 | 620*340*510 | 620*340*510 | 620*340*510 |
| Weight: Net / Gross (Kg) | 5 KG | 9.6KG | 24 KG | 27.6KG | 33.7 KG |
| Color | Black | ||||
| Units per Pallet | 24.00 | 24.00 | 6.00 | 3.00 | 3.00 |
| 7.Environmental | |||||
| Operating Environment | 0 - 40 °C | ||||
| Operating Relative Humidity | 0 - 95% | ||||
| Operating Elevation | 0-3000 meters | ||||
| Storage Temperature | -15 - 45 °C | ||||
| Storage Relative Humidity | 0 - 95% | ||||
| Storage Elevation | 0-15000 meters | ||||
| Audible noise at 1 meter from surface of unit | 41.00 dBA | 45.00 dBA | 45.00 dBA | 53.00 dBA | 53.00 dBA |
| Online Thermal Dissipation | 100.00 BTU/hr | 135.00 BTU/hr | 275.00 BTU/hr | 375.00 BTU/hr | 430.00 BTU/hr |
| 8.Conformance | |||||
| Regulatory Approvals | C-tick,CE,EN 50091-1,EN 50091-2,VDE | ||||
| Standard Warranty | 3 years repair or replace (excluding battery) and 2 year for battery | ||||
| Environmental Compliance | RoHS 7b Exemption,China RoHS,REACH: Contains No SVHCs | ||||

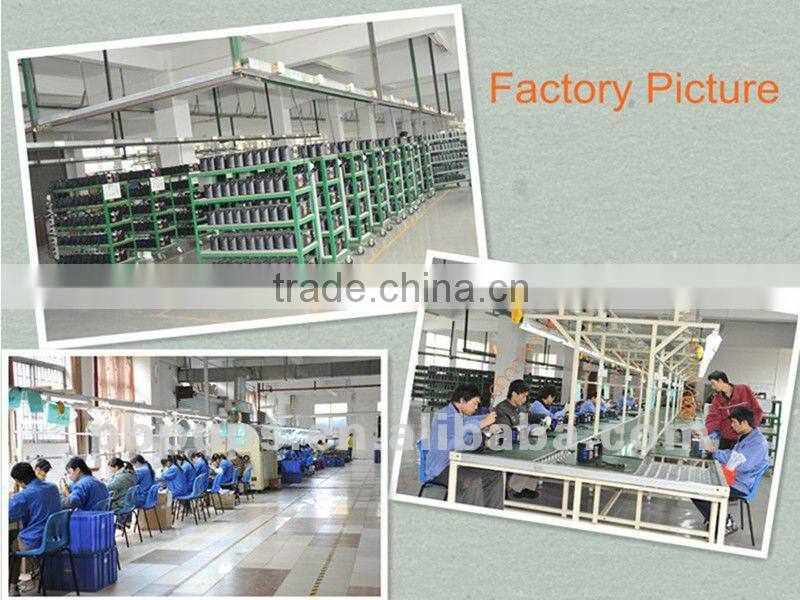

4. Factory View :
5. Typical Application
Smart series is equipped with isolation transformer to provide full isolation and complete common mode noise rejection for precious equipment. Without extra space for added transformer, its compact design is perfect for limited working environment
Contact Us
- Shenzhen Must Solar Power Co., Ltd.
- Contact nameJason Xu Chat Now
- Phone86-755-29107020
- Address4F/5F Bldg 11, Yusheng Industrial Park, NO 467, Xixiang, National Highway 107, Baoan District, Shenzhen, China , Shenzhen, Guangdong
