pure sine wave pakistan ups 1kva 2kva 3kva 6kva 10kva

FOB Price

US$ 128 - 1,010 / Piece

1 Piece(Min. Order)

Port Shenzhen /Hongkong
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	PBP
Model Number	Castle series homage pakistan ups	Phase	Single Phase
Protection	Overvoltage	Weight	48kg
Output Voltage	220v±2%	Type	On-line
Application	Medical

Product Description

Specifications

1.DSP control ups
2.Extended backuptime
3.optional high efficency mode
4.LCD/LED Display ups
5.efficency>95%

1KVA 2KVA 3kva online high frequency ups manufacturer in china

Main Features:

True online UPS, 0 Transfer Time, Double Conversion

a. True on-line double conversion technology with advanced microprocessor control
b. Wide input voltage range with high frequency technology
c. Zero transfer time
d. Protection against all type of power problems
e. ups power supply has the self test while start
f. Site wiring fault warning
g. On-battery power-on function
h. Smart RS232 communication interface
i. Intelligent slot available
j. Sealed acid battery,free-maintenance battery in high frequency online ups 1kva 2kva 3kva

1.UPS Specification:

High Frequency Online UPS Castle Series UPS
C1KVA/C1KS,C2KVA/C2KS,C3KVA/C3KS 1000VA~3000VA Specifications

1.Output

Output	C1KVA/C1KS	C2KVA/C2KS	C3KVA/C3KS
Rated Power	1000VA/700W	2000VA/1400W	3000VA/2100W
Output Voltage	208VAC/220VAC/230VAC/240VAC
Voltage Waveform	Pure Sine wave
Crest Factor	3:1
Output Frequency (Synchronized- Mains)	46~54Hz or 56Hz - 64Hz (Line mode) 50/60HZ/ ±0.05Hz( Battery mode)
Regulation(Nominal)	±1%
Regulation (Battery mode)	±1%
Transfer time	0 ms; less than 4 ms from inverter to bypass and vice versa
Over current protection	Line Mode:10min@100%~130%; Battery Mode:30s@100%~130%
Outlet	IEC4/IEC6/IEC*4+Terminal
Harmonic Distortion	≤2%THD(Linear Load); ≤5%THD(Non-Linear Load)

2.Input

Input	C1KVA/C1KS	C2KVA/C2KS	C3KVA/C3KS
Nominal Voltage	160~300VAC@full load (110~300VAC@half load)
Input Frequency	46~54Hz / 56~60Hz
Efficiency	87% (AC mode)/83%(Battery Type)
Noise Filtering	Full time EMI/RFI filtering
Over current protection	by AC fuse or by re-settable over current protector

AVR Range

(2 Bucks,2 Boosts)

Enhanced Buck: +15% of selected nominal voltage
Buck mode: +5% of selected nominal voltage
Boost mode: -5% of selected nominal voltage
Enhanced Boost: -12.5% of selected nominal voltage

Phase

Single phase with ground

3.Battery

Battery type	Sealed lead acid Battery
Rated Charging Voltage	41.0Vdc / 81.9Vdc / 109.2Vdc
Typical backup time	>5min
Charging method	Smart pulse charging with two charging modes. Quick charging when battery is not fully charged, trickle charging when battery is 90% fully charged.
Charging current(MAX)	1.0A(C1KS-C3KS:4.0/8.0A)
Protection	Over current protection & Over charging voltage protection (SCR control) Thermal protection (CPU control) When temperature inside UPS is over 45°C, charger will stop charging for 2.5 minutes followed by an 1.5 minutes charging. The cycle will be repeated until the temperature is lower than 44°C.
TemperatureCompension	Yes
Numbers of Batteries	3	8	8

4.Optional Features

ECO Mode	Support
CVCF	Support
PDU	Support
Remote Panel	Wired Type,Up to 100M Length

Parallel Redundancy

Up to 4 Units maxium(Option)

5.Environmental and Safety

Operating Temperature	0°C to 40°C (32°F to 104°F)
Transit/storage Temperature	-15°C to 55°C (5°F to 131°F)
Relative Humidity	20-90%(NON-CONDENSING)
Operating Altitude	0 ~ 3000 meters
Audible noise	50 dBA
Safety Markings	BSMI	CE
EMC	Class B, EN50091-2, FCC part15, IEC1000-2-2
Quality control system	ISO 9001:2000
Noise Level	<55db@1 Meter

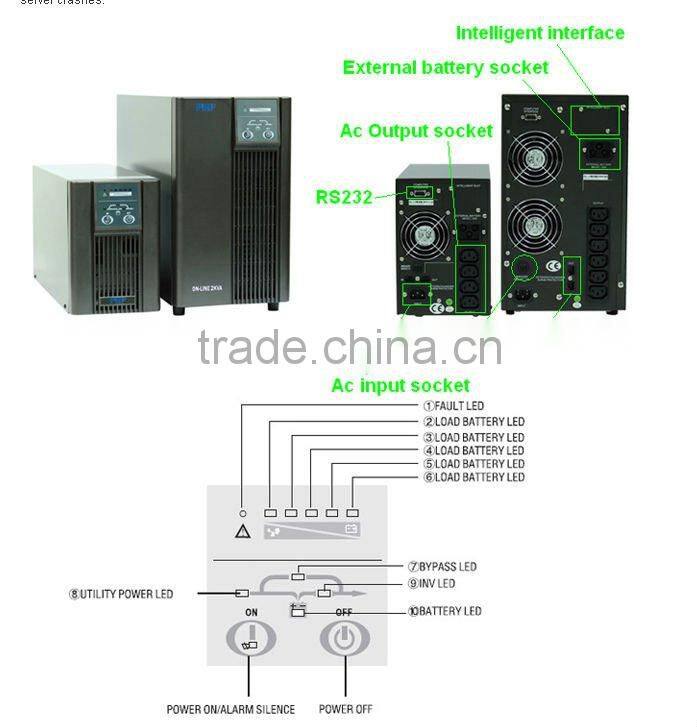

LED Version	Load Level/Battery Level/Battery;Mode/AC Mode/Bypass Mode/Fault
Battery Mode	Sounding every 4 seconds
Low Battery	Sounding every second
Overload	Sounding twice every second
Fault	Continously Sounding
LCD Version	Load/Battery/Input/Output/Operating;Mode Information

6.Indicator Interface

Smart RS-232	Software supports Windows Family. Sun Solaris,IBM Aix,Compaq True64, SGIIRIX ,FreeBSD.HP-UX,and MAC
USB (Option)	Windows Family& MAC
Internal Slot(Option)	SNMP/AS400 Relay Card/Rs485
EPO(Option)	Support Emergency Shutdown

7.Physical

Dimensions: (D×H×W)mm	400145220	460192348	460192348
N.W/G.W(kg)	1KVA:14 / 1KS:7	2KVA:34 / 2KS:13.5	3KVA:35 / 3KS:14
Packing	PBP standard Packing,Export carton for each unit

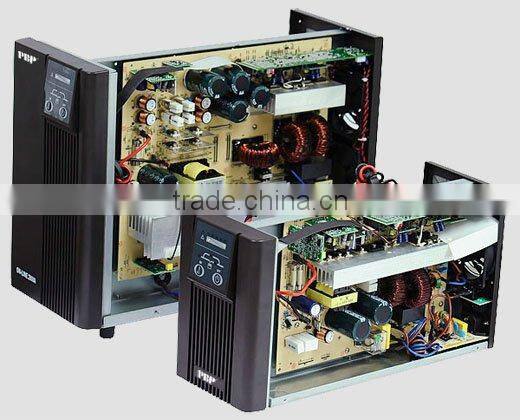

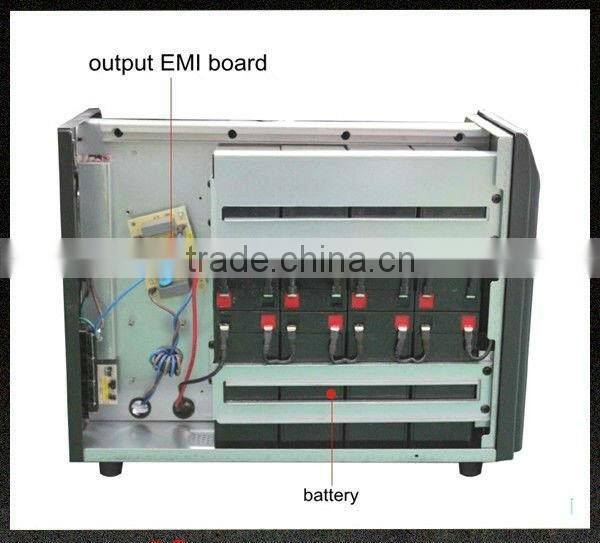

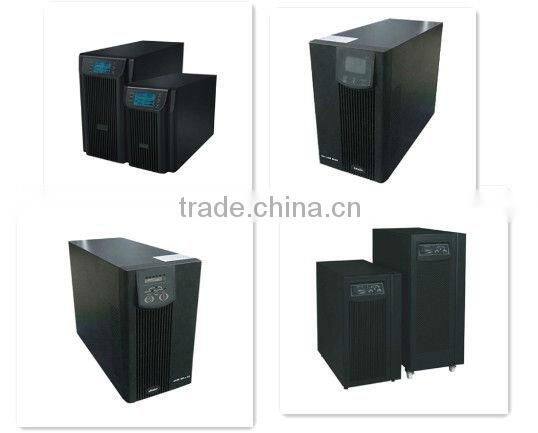

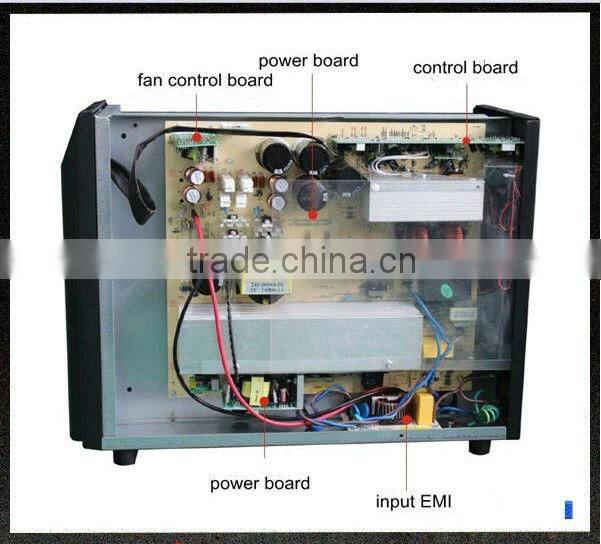

2.UPS Detail Picture:

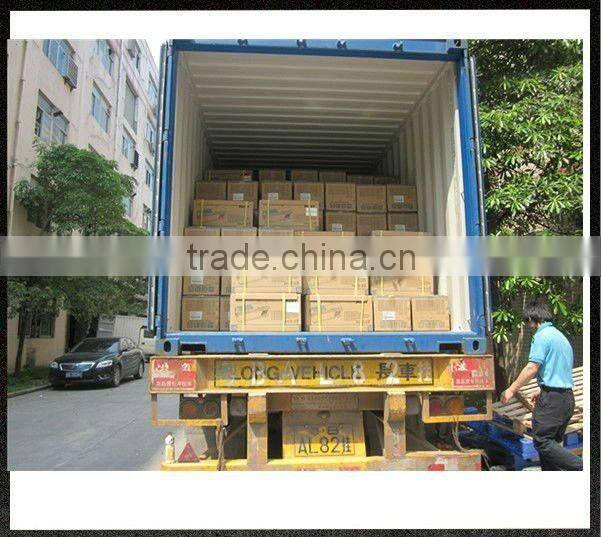

3.Packing:

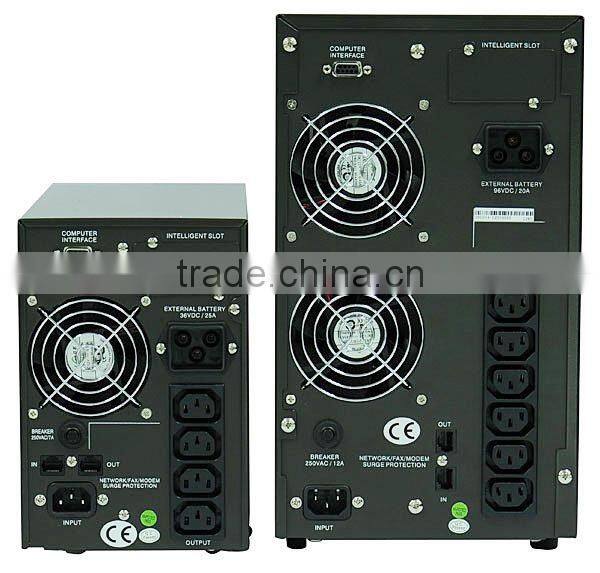

4,Sockets and Cable:

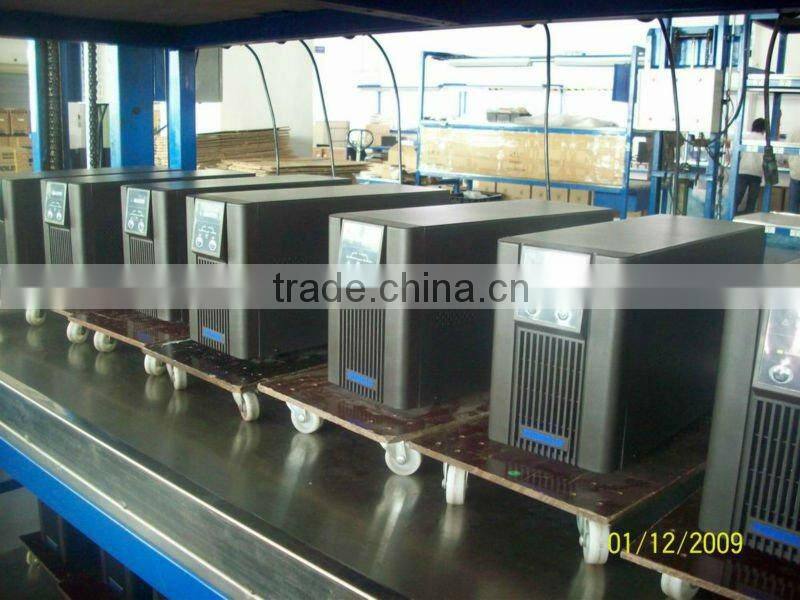

5.Factory Tou:

1KVA 2KVA online high frequency ups manufacturer in china
