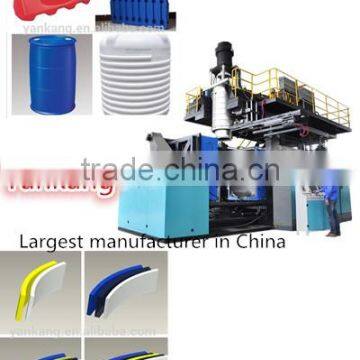

China supply 3000L three layers blow molding machine
- Qingdao China
- T/T
You May Like
-
HDPE Water Tank Blow Molding Machine
-
water tank blow molding machine for 3000Liter-4Layers ,China supplier
-
3000L-2Layers blow molding machine
-
2015 High Speed PE/HDPE making machine// cheap of Plastic blowing machine price
-
China plastic making machine//water storage tank making machinery
-
YK3000L three layers blow molding machine //Plastic machine
Product Details
| Condition | New | Application | Other, water tank | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Shandong, China | |
| Brand Name | YANKANG | Model Number | YK3000L-3 | |
| Power(W) | 350KW | Dimension(L*W*H) | 12m*4.5m*7.2m | |
| Weight | 65 Ton | Certification | ISO9001 | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
PARISION CONTROL THINCKNESS CONTROL | MOOG | JAPAN |
PLC | SEIMENS | GERMANY |
TEMPERATURE CONTROL MODULE | SEIMENS | GERMANY |
SERVO VALVE & SERVO TRANSDUCER | MIRAN | ITALY |
INVERTER | SEIMENS | GERMANY |
HYDRAULIC OIL SEAL | DZ | TAIWAN |
INTERMEDIATE RELAY | OMRON | JAPAN |
PNEUMATIC VALVE | AIRTECH | TAIWAN |
HYDRAULIC PUMP & VALVE | YUKEN | JAPAN |
PNEUMATIC SWITCH & CONTACTOR | SEIMENS | GERMANY |
HYDRAULIC MOTOR & SCREW MOTOR | SEIMENS | GERMANY |
REDUCER | GUOMAO | CHINA |
No |
| specifications | 3000 Liter |
|
| Model No. | 3 layers |
|
| Processing material | HDPE/HMWHDPE |
1 | Extruders | Gear Box Type | Hard surface |
Max Screw Speed | 60RPM | ||
2 | Accumulator Die Head | Heating Load | 100kw |
Die-Core size [ Min / Max] | 300-700MM | ||
Inverter | Siemens | ||
Max. parison weight | 80KG | ||
3 | Moulding Clamping Unit | CLAMPING PLATEN Size | 2100X2200mm |
MAX MOLD SIZE | 1930X2300mm | ||
Mould Clamping Force | 2200KN | ||
Mould Thickness | 1320-1800mm | ||
4 | Stretching and Blowing Unit | Spreading stroke | 400-800mm |
Vertical stroke max. | 350mm | ||
5 | Electrical Control Panel | Thickness controller | 100 points Moog |
Main Operation Panel | Siemens | ||
Die Head Control Temperature Control | Siemens | ||
6 | Hydraulic System | Hydraulic Drive motor (Main) | 45KW |
Hydraulic Drive Motor (Parison Control) | 7.5kw | ||
Oil Tank Capacity | 1200L | ||
7 | Gripper | Gripped stroke | 350mm |
8 | Hopper Loader | Loader | 800kg/H 3pcs |
Hopper | 50kg 3pcs | ||
9 | Production rate | Productivity | 12pcs/h |
Product Weight | 18kg | ||
10 | Delivery period |
| 6 months |
11 | Weight of Machine |
| 65Ton |
| Size of Machine | [L x W x H ] (M) | 12mx4.5mx7.2m |
12 | Total power |
| 350KW |
13 | Average power Consumption |
| 250KW |
DELIVERY TIME
4months after the down payment;
TRAINNING
The Buyer could dispatch their operators to the Seller's factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the Buyer, the Seller's technician could train the Buyer's operators in the Buyer's factory in the periods of installing & adjusting;
The training is free of charge;
INSTALLATION & ADJUSTMENT
The Seller could dispatch an engineer against the requests of the Buyer to install and adjust the machines for one week in the Buyer's factory.
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should pay for the engineer's food & board while installation in buyer's factory.
GUARANTEE
The guarantee time is one and half year after the machines normally works in the Buyer's factory, if only the problem is cause due to quality control or any reason by the Seller. We will supply replaced parts free of charge and our engineers will guide you how to solve the problems.
Any problem caused due to irregular operation or incorrect maintenance by the Buyer won't be listed in guarantee coverage.
