Home > Products > 3000 L Blow Molding Machine > 3000L 4layers Blow Molding Machine

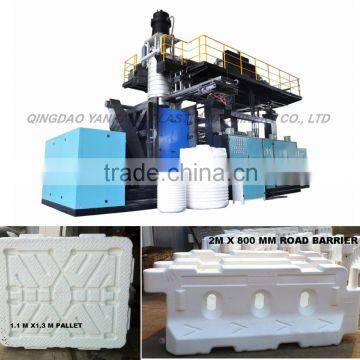

3000L 4layers Blow Molding Machine
- Qingdao port China
- T/T
You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Shandong, China | |
| Brand Name | Yangkang | Model Number | YK3000L-4 | |
| Power(W) | 430KW | Dimension(L*W*H) | 12mx4.5mx7.2 | |
| Weight | 60t | Certification | SGS | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
30% deposit against the contract by T/T should be paid before the order;
70% balance should be paid off by L/C after inspection before delivery;
- 1. Configuration:
PARISION CONTROL THINCKNESS CONTROL | MOOG | JAPAN |
PLC | SEIMENS | GERMANY |
TEMPERATURE CONTROL MODULE | SEIMENS | GERMANY |
SERVO VALVE & SERVO TRANSDUCER | MIRAN | ITALY |
INVERTER | SEIMENS | GERMANY |
HYDRAULIC OIL SEAL | DZ | TAIWAN |
INTERMEDIATE RELAY | OMRON | JAPAN |
PNEUMATIC VALVE | AIRTECH | TAIWAN |
HYDRAULIC PUMP & VALVE | YUKEN | JAPAN |
PNEUMATIC SWITCH & CONTACTOR | SEIMENS | GERMANY |
HYDRAULIC MOTOR & SCREW MOTOR | SEIMENS | GERMANY |
REDUCER | GUOMAO | CHINA |
Auxiliary Machinery
Items | Capacity | |
1 | Air Tank Receiver | 4 M³ |
2 | Air Compressor | 22 KW |
3 | Chilller | 30 HP |
4 | Grinder | 18.5 KW |
5 | Mixer | 200 KG |
6 | Cooling tower | 120 TON |
OUTPUT FOR 2000 L BLOW MOLDING MACHINE:
Commodity | Output | Unit | Weight | Unit |
1000 L Mould | 12 | PC/H | 18 | KG |
1500 L Mould | 9 | PC/H | 26 | KG |
2000 L Mould | 8 | PC/H | 36 | KG |
2500 L Mould | 7 | PC/H | 42 | KG |
3000 L Mould | 6 | PC/H | 50 | KG |
DELIVERY TIME
6 months after the down payment;
TRAINNING
The Buyer will send their operators to the Seller’s factory for training, including machine operation, maintenance & simple repairs; Or against the requests of the Buyer, the Seller’s technician could train the Buyer’s operators in the Buyer’s factory in the periods of installing & adjusting;
The training is free of charge;
INSTALLATION & ADJUSTMENT
The Seller will send an engineer against the requests of the Buyer to install and adjust the machines for one week in the Buyer’s factory.
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should pay for the engineer’s round air ticket, food & board while installation in buyer’s factory.
GUARANTEE
The guarantee time is one yearafter the machines normally works in the Buyer’s factory, if only the problem is cause due to quality control or any reason by the Seller. We will supply replaced parts free of charge and our engineers will guide you how to solve the problems.
Any problem caused due to irregular operation or incorrect maintenance by the Buyer won’t be listed in guarantee coverage.
