Home > Products > 3000 L Blow Molding Machine > 2015 HOT SALE ! BLOW MACHIENS FOR TANK

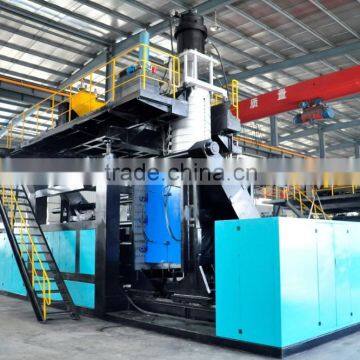

2015 HOT SALE ! BLOW MACHIENS FOR TANK
- Qingdao China
- T/T
You May Like
-
HOT SALE !! PLASTIC MACHINE FOR HDPE WATER TANK
-
YK 3000L Water Tank Making Machine /plastic machine manufacturer
-
NEW STYLE HDPE/PE PLASTIC EXTRUSION BLOW MOLDING MACHINE
-
3000LITER WATER TANK EXTRUSION BLOW MOLDING MACHINE
-
HOT ! HOT SALE! Plastic Water Storage Tank Blow Molding Machine
-
PE HDPE 3000Liter Vertical Water Tank Making Machine
Product Details
Condition | New | Application | Other, WATER TANK | |
Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
Automatic | Yes | Place of Origin | Shandong, China | |
Brand Name | YANKANG | Model Number | YK3000L-3 | |
Power(W) | 350KW | Dimension(L*W*H) | 12M*4.5M*7.2M | |
Weight | 65TON | Certification | ISO9001 | |
Warranty | ONE YEAR | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
PARISION CONTROL THINCKNESS CONTROL | MOOG | JAPAN |
PLC | SEIMENS | GERMANY |
TEMPERATURE CONTROL MODULE | SEIMENS | GERMANY |
SERVO VALVE & SERVO TRANSDUCER | MIRAN | ITALY |
INVERTER | SEIMENS | GERMANY |
HYDRAULIC OIL SEAL | DZ | TAIWAN |
INTERMEDIATE RELAY | OMRON | JAPAN |
PNEUMATIC VALVE | AIRTECH | TAIWAN |
HYDRAULIC PUMP & VALVE | YUKEN | JAPAN |
PNEUMATIC SWITCH & CONTACTOR | SEIMENS | GERMANY |
HYDRAULIC MOTOR & SCREW MOTOR | SEIMENS | GERMANY |
REDUCER | GUOMAO | CHINA |
Specification
No |
| specifications | 3000 Liter |
|
| Model No. | 3 layers |
|
| Processing material | HDPE/HMWHDPE |
1 | Extruders | Gear Box Type | Hard surface |
Max Screw Speed | 60RPM | ||
2 | Accumulator Die Head | Heating Load | 100kw |
Die-Core size [ Min / Max] | 300-700MM | ||
Inverter | Siemens | ||
Max. parison weight | 80KG | ||
3 | Moulding Clamping Unit | CLAMPING PLATEN Size | 2100X2200mm |
MAX MOLD SIZE | 1930X2300mm | ||
Mould Clamping Force | 2200KN | ||
Mould Thickness | 1320-1800mm | ||
4 | Stretching and Blowing Unit | Spreading stroke | 400-800mm |
Vertical stroke max. | 350mm | ||
5 | Electrical Control Panel | Thickness controller | 100 points Moog |
Main Operation Panel | Siemens | ||
Die Head Control Temperature Control | Siemens | ||
6 | Hydraulic System | Hydraulic Drive motor (Main) | 45KW |
Hydraulic Drive Motor (Parison Control) | 7.5kw | ||
Oil Tank Capacity | 1200L | ||
7 | Gripper | Gripped stroke | 350mm |
8 | Hopper Loader | Loader | 800kg/H 3pcs |
Hopper | 50kg 3pcs | ||
9 | Production rate | Productivity | 12pcs/h |
Product Weight | 18kg | ||
10 | Delivery period |
| 6 months |
11 | Weight of Machine |
| 65Ton |
| Size of Machine | [L x W x H ] (M) | 12mx4.5mx7.2m |
12 | Total power |
| 350KW |
13 | Average power Consumption |
| 250KW |
Production Range
Our blow molding machine is mainly used for making water tank capacity from 200L-10000L ( 2 Layers, 3 Layers, 4 Layers, 5 Layers)
Production range also includes Road barrier, Pallet, IBC tank, Double Ring tank.
Layers show
Factory Shows
Yankang have been this line 7 years experience, have their own Die head, hydraulic, oil tank factory to make sure machine in high quality.Yankang insisit puting quality and best service in priority.
DELIVERY TIME
4months after the down payment;
TRAINNING
The Buyer could dispatch their operators to the Seller's factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the Buyer, the Seller's technician could train the Buyer's operators in the Buyer's factory in the periods of installing & adjusting;
The training is free of charge;
INSTALLATION & ADJUSTMENT
The Seller could dispatch an engineer against the requests of the Buyer to install and adjust the machines for one week in the Buyer's factory.
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should pay for the engineer's food & board while installation in buyer's factory.
GUARANTEE
The guarantee time is one and half year after the machines normally works in the Buyer's factory, if only the problem is cause due to quality control or any reason by the Seller. We will supply replaced parts free of charge and our engineers will guide you how to solve the problems.
Any problem caused due to irregular operation or incorrect maintenance by the Buyer won't be listed in guarantee coverage.
