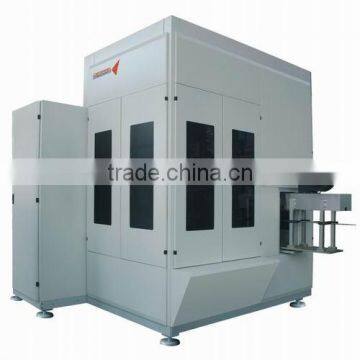

stretch blow molding machine-dmk-r6

Specifications

Pet Blow Molding Machine
blow molding machine
stretch blow molding machine
pet blow molding machine

DMK-R6(6 cavities, one in each mould), 9000 Bottles/Hr, The capacity of the products is from 0.25L to 2.0L

A.Brief Introduction
DMK-R6 (6 stations, one mould in each station), 9000 Bottles/Hour, 1500 bottles/cavity/hour.
DMK-R6 is the most stable two-step fully automatic high-speed rotary stretch-blow moulding machines(reheat). The capacity of the products is from 0.25L to 2.0L. It can blow pet bottles for different use: carbonated, mineral water, milk, beer, oil, hot filling tea, and other drink packing containers, which is made of plastic of crystalline type, such as PET, PP etc.
DMK-R series has adopted original heating and blowing technics, by which the automatic blowing machine series have achieved in powerful productivity but very reasonable price.

B.Machine Construction
B.1. Preform feeding and loading unit
The design of the recycling unit prevents the preforms from getting bound up in the unscrambler. The star wheel design of the feeding unit provides the lowest possible changeover times for switching to different perform sizes.

B.2. Linear Oven
A mandrel capable of turning 180 degrees guarantees uniform neck section during the heating. A unique oven ventilation system enables the DMK-R series blower to handle various difficult applications easily.
Power saving: heater is fixed with link of short section, which assures to heat more performs with the same heating length. In this way, it saves electricity of 25%.
B.3. Preform and bottle transfer wheel
The new DMK-R series utilizes a classic double cam telescopic gripper system, this guarantees reliable movement, and easy maintenance.

B.4. Molds and Mold Carriers
The mold carrier utilizes a shell blow mold design; this reduces the changeover time for different blow molds. The Mold carriers accommodate all shell type molds from conventional blow molding machines, this saves time and expense for bottle producer. Moreover, the reliable quick locking system maximizes the performance of the mold carriers.

B.5. Blowing Station
A changeable cam for the stretching curve guider guarantees the form quality for different size bottles. Monobloc blowing valves achieve the fastest and most consistent blowing process possible. Bottle necks are protected during the blowing stage by a specially designed sealing unit.

C.Options:
C.1. PID heating zone system (Option)
Within this system, an infrared thermometer automatically detects the temperature of the performs and adjusts the temperature of the oven as needed. This automatic adjustment avoids the influence of a temperature difference between day time and night; also the system can use an additional lamp alarm, this alarm will sound when it detects any broken or aging lamps.

C.2. Patented Air Recovery system (Option)
We know that most of the production costs for blowing bottles are attributed to generating the high pressure compressed air and applying heat to the preforms. In order to lower these production costs for the bottler producer, Demark Machinery has introduced its patented Air recovery system. This system recovers up to 30% of the final high pressure blowing air and ultimately lowers the cost to produce bottles.

C.3. Air cooling system (Option)
Thanks to the design contributions of our engineer, Demark Machinery has developed a revolutionary air cooling system for hot fill PET bottles. After high pressure blowing, an air cooling stage is introduced to reduce the level of PET residual stress and increase the rate of PET crystallization. After this air cooling process, now PET bottles can stand hot filling without deformation.

D.Advantages of Rotary Automatic Stretch-Blow Molding Machines
D.1. High productivity: 1700pcs/cavity/hour
D.2. High eligible rate: above 99.6%
D.3. Adopting SIMENS electric controlling system; with high precision and fast speed
Stable function:
i). blowing system adopts Germany valve and cylinder, which has stable and accurate stretching speed and good product consistency
ii). heating system adopts PHILIPS original infrared lamps, which is good in thermal properties and high in durability.
iii). Germany SEW main electric motor assures stable rotating speed and stable operation.
D.4.Mold fixing structure assures fast mold fixing speed and fast mold changing speed
D.5.Automatic plastic loader and automatic recovery device.

E. Research and Development Capacity:
Demark is composed of a powerful team in research and development including more than seventy intermediate and senior technologists. In order to meet different clients' demand, our technologists successfully design and manufacture a series of rotary plastic blow moulding machines: DMK-R4, DMK-R6, DMK-R8, DMK-R10, DMK-R12, DMK-R14 and DMK-R16.

F. Advanced Processing Equipment:
Machine center, digital lathe, EDM, such as many imported American and Japanese machine tools assure processing precision and good interchangeable function.

G. After Sales Service:
With good brand reputation and attitude of customer-centric, we invite special technologists responsible for after sales.
i). Service hotline is 24-hour on call.
ii). Fast response: Domestic call is handled within 12 hours.
                           International call is handled within 24 hours.

H. Technical Parameter:
