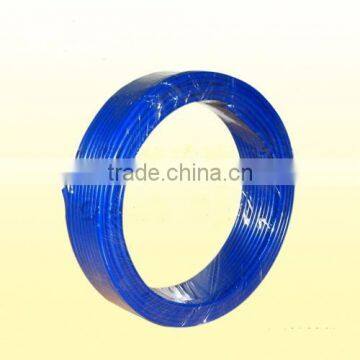

pvc insulated Electric wire/building wire/pvc wire/ H05V2-K

FOB Price

US$ 45 - 100 / Kilometer

2 Kilometers(Min. Order)

Port Qingdao or Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	Sanhe
Model Number	H05V2-K (300/500V)	Type	Insulated
Application	Other, electrical power equipment	Conductor Material	Copper
Conductor Type	Stranded	Insulation Material	PVC

Product Description

Specifications

1.pvc insulated electric wire
2.Iso -9001 quality guarantee
3.Manufacture direct sales,cheap price
4.Small quantity accepted

pvc insulated Electric wire/building wire/pvc wire/ H05V2-K (300/500V) Internal wiring for a conductor temperature of 90 for electric power equipments.

1, Use: Internal wiring for a conductor temperature of 90 for electric power equipments.

2, Standard: VDE0281 BS6004

3, Construction conductor / insulation

4, Type and Specification

Type	Yellow/Green Grounding Core		Conductor		Insulation (mm)		Maximum Diameter (mm)	Minimum Insulation Resistance at 90 (MΩkm)	Weight (kg/km)
	Yellow/Green Grounding Core		Size (mm²)	Construction (/mm)	Thickness	Nominal Diameter
	Yes	No	Size (mm²)	Construction (/mm)	Thickness	Nominal Diameter
H05V2-K	×		1G0.5	16/0.20	0.6	2.14	2.5	0.013	9.0
		×	1×0.5	16/0.20	0.6	2.14	2.5	0.013	9.0
	×		1G0.75	24/0.20	0.6	2.40	2.7	0.011	12.0
		×	1×0.75	24/0.20	0.6	2.40	2.7	0.011	12.0
	×		1G1	32/0.20	0.6	2.54	2.8	0.010	14.7
		×	1×1	32/0.20	0.6	2.54	2.8	0.010	14.7

5, Surface marking

H05V2-K 90 300/500V XXmm² ZHENGZHOU SANHE CABLE CO.,LTD.
