Product Details
| Place of Origin | Henan, China | Brand Name | sanhe | |
| Model Number | BV/BVR/H07V-K/THW | Type | Insulated | |
| Application | Overhead | Conductor Material | Other, copper or aluminum | |
| Conductor Type | Solid | Insulation Material | PVC |
Product Description
copper wire/ electric wire/ single copper wire/aluminum wire
copper conductor PVC insualtion wire/PVC copper wire/XLPE wire/450/750V wire

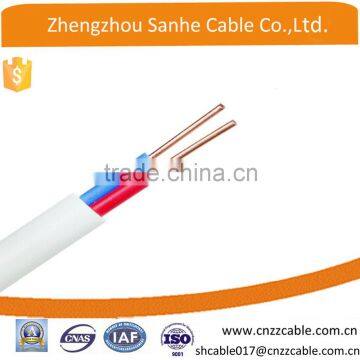

copper conductor PVC insulation single cable ,BYA wire
1.Usage
This product is fit ac rated voltage 300/500V or 450/750V.
2.Working temperature
BV-105℃model not more than 105℃.others not more than 75℃ installation temperature not lower than 0℃.description
3. Technological data
Nominal section (mm2) | N/Dia (mm) | Max outer Dia(mm) | Reference Weight (kg/km) | Conductor resistance at 20℃≤(Ω/km) | ||
copper | Aluminum | copper | Aluminum | |||
1.5(class 1) | 1/1.38 | 3.3 | 20.3 |
| 12.1 |
|
1.5(class2) | 7/0.52 | 3.5 | 21.6 |
| 12.1 |
|
2.5(class 1) | 1/1.78 | 3.9 | 31.6 | 17 | 7.41 | 11.80 |
2.5(class2) | 7/0.68 | 4.2 | 34.8 |
| 7.41 |
|
4(class 1) | 1/2.55 | 4.4 | 47.1 | 22 | 4.61 | 7.39 |
4(class2) | 7/0.85 | 4.8 | 50.3 |
| 4.61 |
|
6(class 1) | 1/2.76 | 4.8 | 50.3 | 29 | 3.08 | 4.91 |
6(class2) | 7/1.04 | 5.4 | 71.2 |
| 3.08 | 3.08 |
10 | 7/1.35 | 7.0 | 119 | 62 | 1.83 | 1.91 |
16 | 7/1.70 | 8.0 | 179 | 78 | 1.15 | 1.20 |
25 | 7/2.04 | 10.0 | 281 | 118 | 0.727 | 0.868 |
35 | 7/2.52 | 11.5 | 381 | 156 | 0.524 | 0.641 |
50 | 19/1.78 | 13 | 521 | 215 | 0.387 | 0.443 |
