450/750V copper conductor PVC nsulation Electrical wire /THW wire

Aluminum /copper conductor  PVC INSUALTION Electrical wire

Description

1.The long-time permissible working temperature of cable conductive core is not more than 70 °C.

2.During short circuit (max. permanent time is not more than 5 seconds), the max temperature of cable conductor is not more than 165°C.

3.The difference level of laying cable is not restricted.When laying the cable,ambient temperature is not lower than 0°C.

4.They have good chemical stability,and properties of acid resistance,alkali resistance,salt resistance,oil resistance,solvent resistance and flame resistance.rty

5.Light weight,good bending property and easy installation and maintenance.

Application

The products is suitable for use in power installations, fixed wiring or flexible

connections for electrical appliances like lighting, electronic equipment, instrument

and communication equipment with rated voltage 450/750V or less

Standard

GB 5023.11997 , JB 8734.15-1998, Q/ZEL 02-2002, GB 5023.17-1997, IEC227

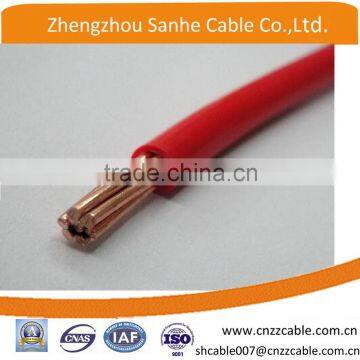

Construction of the electrical wiring(or pvc insulated wire)

1- Flexible Copper Conductor, Solid or Stranded Copper Conductor.
    Class 1, Class 2, Class 5 flexible copper conductor
2- PVC Insulation
3. PVC filling
4- PVC outer sheath
5- Rated Voltage Uo/U (Um):300/500V,450/750V

Colors Available:
 Color Code #1) Black, White, Red, Blue, Green, Orange, Yellow, Brown, Purple, Gray, Pink, Tan
 Color Code #2) Black, White, Red, Blue, Green, Orange, Yellow, Brown, Gray
 Color Code #3) Black, White, Red, Green
 Color Code #4) Black, Green
 Color Code #5) Black

Specification

Other types available. Please contact for detailed specifications and prices. Our friendly service is aiming at giving you the most efficient buying experience available.
