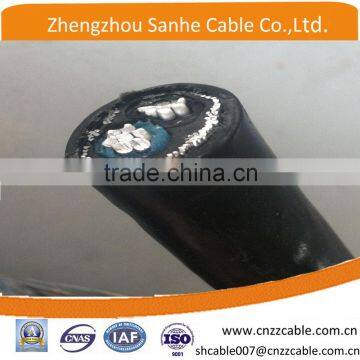

8000 AA aluminum alloy conductor armoured XLPE /PVC insulation concentric electrical cable 2*4AWG+4AWG

Conductors: Stranded Annealed Copper/ Aluminum

Insulation: XLPE/PE/PVC(Cross-linked Polyethylene)
Concentric layer: Single layer of plain annealed copper wires/ alloy conductor

Sheath/Jacket: XLPE /PVC(Cross-linked Polyethylene)

Voltage: 600/1000v

Operating temperature: Maximum 90°C, minimum -30°C

Common Used Colours:

For insulation: White, Black and Red.

For external jacket: Black

PACKAGING:

Wooden Drum

Or length to the client's requirement.

Available Size: MM2, AWG or MCM

10 16 25 35 50 70 95

2 x 8 2 x 6 2 x 4 2 x 2 2 x 1/0 2 x 2/0 2x8 2x10

3 x 8 2x6 3 x 6 2x4 3 x 4 2x2 3 x 2

3 x 1 0 3 x 2/0 4 x 8 4 x 6 4 x 4 4 x 2

250 300 and so on

Application

Power cables for energy supply are used for industry and distribution boards, power stations, house connecting boxes and street lighting as well as control cable for the transmission of control impulses and test data. Overall, where increased electrical and also mechanical protection are required. Those cables are installed in open air, in underground, in water, indoors and in cable ducts. The concentric conductor (C) is allowed to use as PE-, PEN-conductor or as shield. due to the typical construction of concentric conductors it is possible to obtain many more cable joints, without cutting any conductor. In that way the operating reliability is guaranteed.
