Home > Products > AAC Conductor(All aluminum conductor) > BS 215 standard 100mm2 7/4.39 AAC Wasp bare Conductor

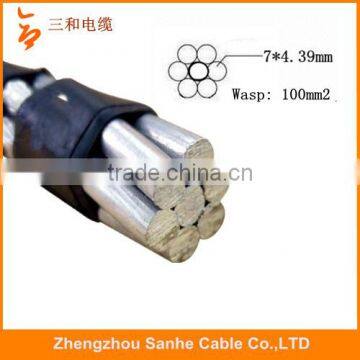

BS 215 standard 100mm2 7/4.39 AAC Wasp bare Conductor

FOB Price

US$ 0.3 - 2.6 / Meter

1000 Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Hello friends, my name is Coco. Glad to introduce our product: " 100mm2 7/4.39 AAC Wasp bare Conductor "

If you have any question, pls don't hesitate to contact us.

We can control every aspect.

The bare conductor ( AAC, AAAC, ACSR, ACAR) is our main products, accouting for about 50 percent of our exporting volume.

Here we only talk about BS 215 standard code " Wasp "

1. Specifications of the Wasp (100mm2, 7/4.39mm ):

code word	Nominal area (mm2)	Stranding	wire diameter	Overall diameter mm	Total Area(mm2)	Appraximater wight	Breaking load(KN)	DC resistance at20^.C ohm/km
Wasp	100	7	4.39	13.17	105.95	292	16	0.2702

2. Applications:

t's used for electric transmission lines with little span and less stress.

The temperaturer of continous use does not exceed to 75 degree.

Production Flow:

Part of production line:

Our main products

Bare conductor: AAC, AAAC, ACSR, ACAR cable ( wasp 100mm2 7/4.39 mm) ;

ABC cable: duplex,triplex, quardruplex service drop;

Concentric cable: aluminum or copper conductor, one/ two/ multi-core optional;

PVC insulation wire: solid or flexible copper conductor wire;

Power cable: PVC/ XLPE insulated armoured/ non-armoured PVC sheathed, etc.
