0.45mm Thickness 96% Alumina Ceramic Substrate
- Chengdu Air Port/Shanghai Sea Poet
- T/T Credit Card
You May Like
-
0.28mm Thickness 96% Alumina Ceramic Substrate
-
0.25mm Thickness 96% Alumina Ceramic Substrate
-
1mm Thickness 96% Alumina Ceramic Substrate
-
Alumina Ceramic Plate Heater// Industrial Alumina Plate
-
Electronics Ceramic Substrate // Industrial Alumina Plate
-
92%~96% Alumina Ceramic Substrate// Industrial Ceramics
Product Details
| Place of Origin | Sichuan, China | Brand Name | JIABANG | |
| Model Number | Customized | Type | Insulating Ceramics | |
| Material | Alumina |
Product Description
0.45mm Thickness 96% Alumina Ceramic Substrate
Features
High reliability,High insolation
High thermal conductivity,Low dielectric loss
Excellent anticorrosive property, High Temperature Resistance(1650C)
Applications
96% alumina ceramic substrate is widely used in the Thick Film Circuit,large-scale integrated circuit,HIC,semi-conductor assembly,Chip Resistor, potentiometer,power module and other relative areas

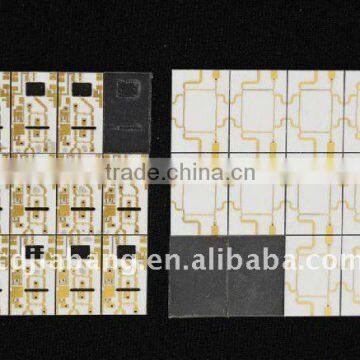

Metallization
The surface can be covered a lay of metallization,such as Ag, Pd-Ag,Mo-Mn, Ni-plating with good tensile strength: Mo-Mn thickness: 25~40μm,Ni thickness:3~7μm, Tensile strength≥120MPa
Regular thickness
0.25mm 0.28mm 0.45mm 0.5mm 0.635mm 1.0mm 1.5mm 1.8mm 2.0mm
Specification
Please let us know the 5 important things of your need for product.
1. What size of product do you need?
2. What about is the allowable tolerance?
3. what is the material do you need for the ceramic product?
4. where do you use such substrate ?
5. How much is your quantity demand?
#If you can give us your technic drawing,we will be very appreciate.
If you need more information or have any question,pls kindly let us know and we will reply to you A.S.A.P!
