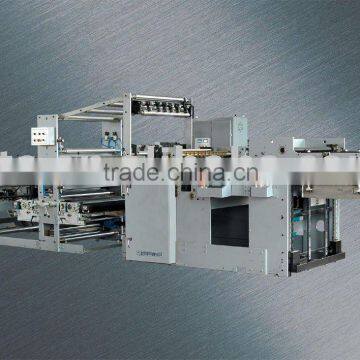

LYX-930 flexo web printing cutting machine flexo printing machine

Condition	New		Plate Type	Letterpress
Place of Origin	Jiangsu, China		Brand Name	luota
Model Number	LYX-930		Usage	Paper Printer
Automatic Grade	Automatic		Gross Power	26KW
Dimensions(L*W*H)	7600*1840*2200mm

Specifications

LYX-930 flexo web printing cuting machine flexo printing machine flexo equipment printing machine is for notebook, letter...

 LYX-930 flexo web printing cuting machine flexo printing machine flexo equipment printing machine the printing and slitting are separated to eliminate the violation effects caused by slitting and so ensure high speed and high quality. It is double faces and double colors, equipped with single arm electric paper rack, and auto tension control system Automatically guiding paper, printing, slitting,collecting  paper, and lining paper. As customers requests, steel wire device and auto ink-adding pump are available.It is the ideal machine to produce varieties of high-class paper  products, such as the notebook, letter paper,etc.

Standard Arrangement:

Web width:                                      Max.930mm,  Min. 580mm

Web dia:                                         Max. 1300mm

Slitting Length(optional,5mm for one gear)

                                                     Max.  670mm

                                                     Min. 300mm

Height of Piling:                              Max. 1000mm

Printing Speed:                               Max  220m/min

Main Motor:                                    22KW

Total Power:                                   26KW

Weight:                                         Approx.6000kg
