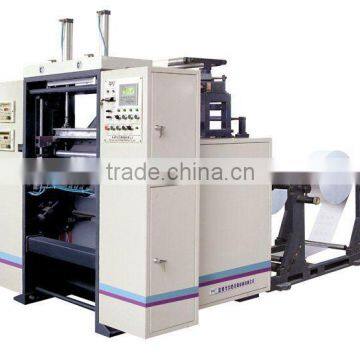

LFQ-S570 two layers slitting rewinder printing machinery

Place of Origin	Jiangsu, China		Brand Name	luota
Model Number	LFQ570		Type	Other, slitting, slitting
Use	Other, slitting, luota		Printing Type	Other, Offset Printing Machine, Offset Printing Machine

Specifications

LFQ-S570 two layers slitting rewinder printing machinery printing equipment reel paper processing machine slit all sorts

LFQ-S570 two layers slitting rewinder printing machinery printing equipment reel paper processing machine, It is adopted Controlled by PLC, set by man-machine interface. intuitive easy. Enquiped with Manual correction, automatic tension control system. Double-standard feature allows upper and lower layers benchmarking reliable, sub-cut and tidy. rewinding length can set,  counting setting. Swinging Arm grand finale structure instead of linear guide structure, making winding more stable.

Standard Arrangement

Putting rolls:                               two

Width of Web:                            570mm

Feed  Dia:                                   800mm

Paper core:                                76mm

Slitting width min:                       30mm

Rewinding Dia:                            80mm( two layers)

                                                    200mm(one layer)

Speed:                                         80 m/min (two  layer)120m/min(one layer)

Power:                                        Three- phase four –wire 380V  50/60Hz.

Main motor:                                1.5KW

Current:                                         8A

 Air presure:                                  up0.5Mpa

Inlet pipe Dia:                                8mm

Packed weight:                                2200KG

Dimensions(Length*width*height):  3500mm*1700mm*2350mm
